ATE ABS Pumps Modules

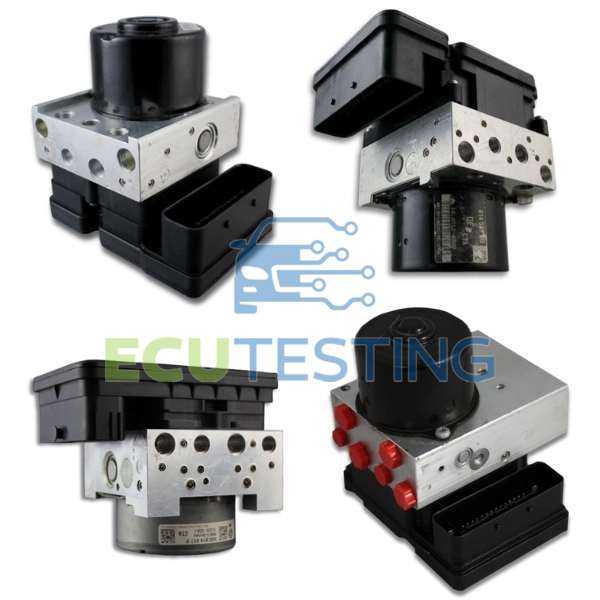

ATE ABS repair

We cover the entire range of ABS (Anti-lock Braking System) pumps and modules manufactured by ATE and have been doing so for many years. Our bespoke Hardware-In-the-Loop test rigs allow us to run all these ABS units under real-world load and driving conditions, both before and after rebuild.


The ATE product philosophy is that: 'Safety systems must be affordable, and that in itself will increase the individual and overall degree of driving safety'. However mass production comes with inherent quality problems and ATE ABS pump and modules certainly do have their share of common issues.


The ATE range is extensive with many versions including MK10, MK20, MK25, MK25E, MK48, MK60, MK61, MK70 and MK100.


These are commonly fitted by the majority of vehicle manufacturers to a vast range of models. Click on the system types below for more information.

ATE MK10 ABS repairMK10

This early ABS pump and module was mainly fitted to BMW and Mercedes models between the years 1994 and 2007. When this ABS pump and fails it will generally illuminate the ESP, BAS and ABS warning light and log a fault for the high pressure pump.

Common fault codes:

  • C1401 - High Pressure Pump Open Circuit/Short Circuit
  • 071 – Pump motor failure
  • 113 – Pump motor malfunction

Affected Vehicles:

  • BMW Z3
  • BMW 3 Series 316i / 318i / 320i / 323i
  • Mercedes ML270 / ML320 / ML500 / ML55

ATE MK20 ABS repairMK20

These MK20 ATE ABS pumps are known for suffering with faults for pump motor and wheel speed sensor issues which will illuminate the ABS warning light, when internal malfunction progresses there may be no communications at all to the ABS module. Detailed information on the Jaguar X-Type issues can be found here

Common fault codes:

  • 01296 – ABS hydraulic pump V64
  • C1095 – pump motor circuit
  • C1155 – wheel speed front left input circuit failure
  • C1145 – wheel speed front right input circuit failure
  • 20 – Hydraulic pump open circuit electrical fault

Affected Vehicles:

  • Audi A3, TT
  • Fiat Doblo
  • Ford Galaxy, Maverick, StreetKa, Escort, Fiesta, KA
  • Jaguar XK, XK8, XKR, S-Type
  • Jeep Grand Cherokee, Wrangler
  • Mercedes SLK, C-Class
  • Seat Alhambra, Leon
  • Volkswagen Golf, Bora, Polo, Lupo
  • Volvo 480, 850, V70, C70, S60, S70, XC70, XC90

ATE MK25 ABS repairMK25

Failure of this type of ABS unit will not only cause the ABS warning light to be illuminated, but we also see a beginning to ABS failure affecting other functionality on the vehicle, noticeably preventing the speedometer working. More information on the Volvo MK25 ABS fault can be found here.

Common fault codes:

  • BCM-0070 – Pump motor supply voltage, faulty signal
  • ABS-0050 – Control module, faulty signal
  • 01276 – pump motor circuit failure
  • 01130 – ABS operation implausible signal
  • C1095 – ABS hydraulic pump motor failure

Affected Vehicles:

  • Ford Focus, Transit Connect, Galaxy, Puma
  • Jaguar S-Type, XK8, XJ8, XKR
  • Mercedes C-Class, CLK, M-Class, R-Class, SLK
  • Nissan Navara, Cabstar, Pathfinder
  • Porsche Cayenne
  • Volkswagen Transporter, Touareg
  • Volvo XC70, XC90, S80

ATE MK25E ABS repairMK25E

This version of the MK25 predominantly effects the Volkswagen Transporter T5 (click for detailed information) and causes warning lights, loss of the speedometer and may also cause the fuel gauge to fluctuate.

Common fault codes:

  • 00285 – ABS wheel speed sensor front right
  • 00290 – ABS wheel speed sensor rear left
  • 01130 – ABS operation implausible signal
  • 01276 – ABS hydraulic pump V64 malfunction

Affected Vehicles:

  • Volkswagen Transporter T5, Touareg
  • Jeep Grand Cherokee
  • Chrysler 300C

ATE MK48 ABS repairMK48

This iteration was not widely used compared to the other system types which makes them incredibly difficult to source for replacement. However we can rebuild these, commonly seeing them in for wheel speed sensor fault codes and pump motor issues.

Common fault codes:

  • C1095 – Hydraulic pump motor
  • 5610 – Pump motor

Affected Vehicles:

  • Ford Focus
  • Peugeot 206

ATE MK60 ABS repairMK60

This is the infamous  ‘Brake pressure sensor’ one. Spanning a 15 year production this ABS has been fitted to multiple makes and models and has the same inherent faults across all vehicles. Those that do not fail in the normal manner will experience faults for internal malfunction. Detailed information can be found for Audi A3, Seat & Skoda, Volkswagen Golf & Touran, BMW 1 & 3 Series, Ford Focus & C-Max, Suzuki Swift, Honda CR-V, Mazda 3 and Volvo range MK60 ABS

Common fault codes:

  • 01435 – Brake pressure sensor
  • 5E20 – Brake pressure sensor 1
  • 66-1 – Brake pressure sensor failure
  • C121D – Brake pressure sensor
  • 5DF5 – Internal fault
  • C1350 – Valve relay / solenoid valve internal / actuator supply

Affected Vehicles:

  • Audi A2, A3
  • BMW 1 Series, 3 Series, Z3, Z4
  • Citroen C2, C3, C5, DS3, C-Crosser
  • Ford Fiesta, Focus, Kuga, C-Max, Mondeo
  • Honda Accord, Civic, CRV
  • Mazda 2, 3, 5
  • Mini One, Cooper
  • Mitsubishi Grandis, Outlander
  • Peugeot 206, 207, 1007
  • Renault Espace, Laguna
  • Seat Altea, Leon, Toledo
  • Skoda Superb, Octavia
  • Suzuki Swift, Splash, Vitara, Grand Vitara
  • Vauxhall Astra, Zafira
  • Volkswagen Beetle, Bora, Golf, Jetta, Eos, Touran, Polo
  • Volvo C30, C70, S40, V50

ATE MK61 ABS repairMK61

This successor to the previous ABS pump and module was used for over a decade and fitted to numerous makes and models, however it too has its defects. Most failures detail a breakdown in the pump motor or inbuilt ECU and will cause constant illumination of the ABS warning light. Click the model name for more information on this MK61 ABS for Volkswagen Golf & Audi TT and BMW 1 Series, 3 Series and Z4

Common fault codes:

  • 01276 – ABS hydraulic pump (V64) malfunction
  • 01130 – ABS operation implausible signal
  • 5DF0 – Hydraulic unit pump motor
  • 5DF1 – Hydraulic unit pump motor connector
  • C0110 – Return pump circuit malfunction
  • C2116 – ABS pump motor supply / recirculation pump
  • 52-1 – ABS motor circuit
  • C0020 – ABS pump motor control

Affected Vehicles:

  • Audi A3, TT, Q7
  • BMW 1 Series, 3 Series, 6 Series, Z4
  • Chevrolet Epica, Captiva
  • Chrysler PT Cruiser, Sebring
  • Citroen C-Crosser
  • Dodge Caliber, Journey
  • Ford Fiesta, Focus, Tourneo, Kuga, Transit Connect, C-Max
  • Honda Accord, CR-Z, Insight
  • Jaguar XK8, XKR, S-Type
  • Jeep Patriot, Wrangler
  • Land Rover Freelander, Range Rover
  • Mercedes C-Class, SLK
  • Mitsubishi ASX, Lancer, Outlander
  • Nissan Pathfinder, Navara, GT-R, Pixo
  • Renault Scenic, Megane, Laguna
  • Seat Altea, Leon
  • Skoda Octavia, Superb, Yeti
  • Vauxhall Astra, Antara, Combo, Zafira
  • Volkswagen Caddy, Golf, EOS, Jetta, Scirocco, Touran
  • Volvo V70, S40, S60, S80, XC60

ATE MK70 ABS repairMK70

The MK70 ABS is another system type that is common for loss of communication, consequently preventing the dashboard speedometer from working. Further information can be found here for Peugeot 207 and Ford Fiesta

Common fault codes:

  • C1350 – Actuator supply / recirculation pump, pump locked
  • C1380 – Pump motor fault / solenoid valve internal fault

Affected Vehicles:

  • Audi A3
  • Chevrolet Aveo, Lacetti, Matiz
  • Citroen C2, C3, C3 Picasso
  • Fiat Doblo
  • Ford Focus, Fiesta, Fusion, Transit, KA
  • Mazda 2, 3, 5
  • Mini One, Cooper
  • Peugeot 206, 207, 308
  • Seat Altea, Leon
  • Skoda Octavia
  • Suzuki Alto, Splash, Swift, Grand Vitara
  • Vauxhall Agila, Astra, Combo, Zafira
  • Volkswagen Caddy, Golf

ATE MK100 repairMK100

Commonly this ABS system type will cause brake binding on the BMW 1 Series (click for more information) for other models standard braking will still be in affect but the ABS and ESP warning lights will be illuminated.

Common fault codes:

  • C0018 – Left rear inlet control
  • U3000 – Control module defective
  • C1380 – Recirculation pump supply

Affected Vehicles:

  • BMW 1 Series, 2 Series, 3 Series, 4 Series
  • Ford Fiesta
  • Citroen DS3
  • Seat Leon

Need your ATE ABS pump and module repairing?

If you have one of these ATE ABS units and would like to send it for testing and repair:

Fill in and submit this test form.

Print the booking confirmation email.

Package the ATE ABS unit inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your ABS and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your ABS pump and module and return it to you with an unlimited mileage warranty.

If you require further information regarding these ATE ABS pump and modules then please contact us.
