Volkswagen Transporter T5 ABS pump fault

Volkswagen Transporter T5 ABS pump fault

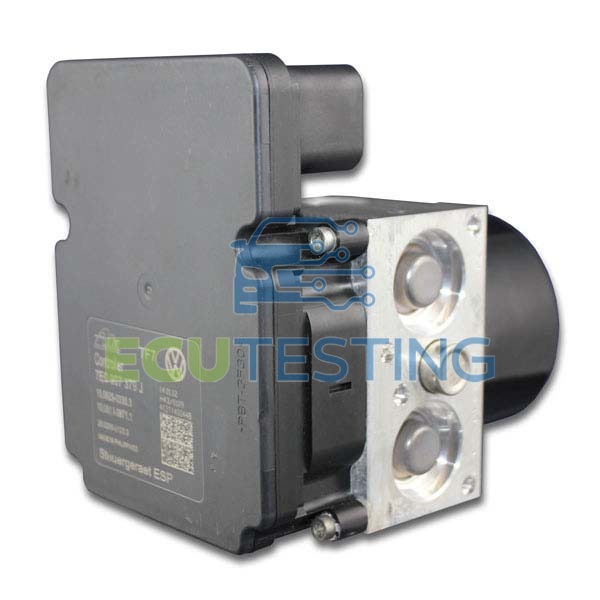

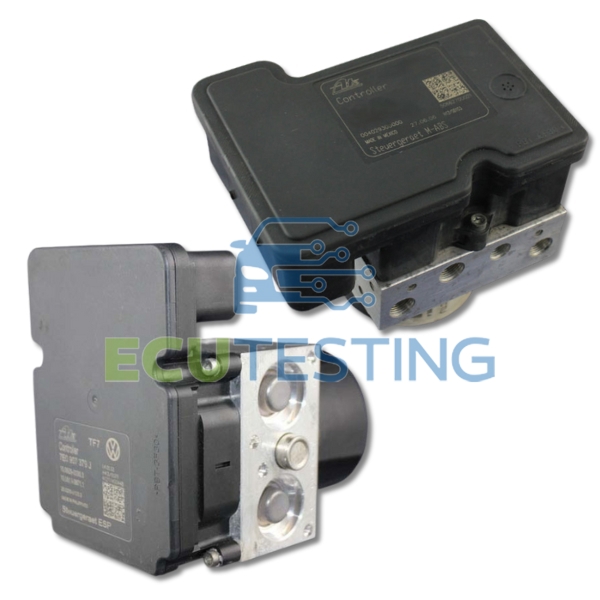

This ABS pump and module for the Volkswagen T5 Transporter is a commonly failing part that will cause the constant illumination of the ABS and Traction Control warning lights and an audible beeping on starting the vehicle. In addition to these warning lights; the Handbrake light will flash, the speedometer will become inoperative and the fuel gauge may become erratic.

Commonly the internal malfunction of these VW T5 ABS pumps will cause codes to be logged for 00285 – ABS Wheel Speed Sensor Front Right, 00290 – ABS Wheel Speed Sensor Rear Left and 01276 – ABS Hydraulic Pump V64 Malfunction, or ultimately it may simply fail to communicate full stop giving a clear indication of failure.

Whilst standard braking will still be in effect, the emergency braking system will not function while these faults are present. To resolve these Transporter T5 and VW T-Porter ABS issues supplying and fitting a brand new unit is not the right way to go.

Our solution, however, is a much more economical approach of rebuilding the original unit for a fraction of the cost of a new unit. This will also remove the cost of programming a new unit to the vehicle as we retain all the coded information, so no need for programming – simply refit and away you go. Unlike the short one-year manufacturer warranty, all of our rebuilds carry an unlimited mileage lifetime warranty.



Shop Now



Common Failure symptoms:

  • No communications to the ABS module
  • ABS and Traction Control warning lights always on
  • Handbrake warning light flashing
  • Audible warning / beeping on start-up
  • Speedometer not working
  • Fluctuating fuel gauge



Common fault codes:

  • 00285 – ABS Wheel Speed Sensor Front Right
  • 00290 – ABS Wheel Speed Sensor Rear Left
  • 01130 – ABS Operation Implausible Signal
  • 01276 – ABS Hydraulic Pump V64 Malfunction



Affected Vehicles:

  • Volkswagen Transporter T5 2003 – 2010



Common failing part numbers:



Test and rebuild:

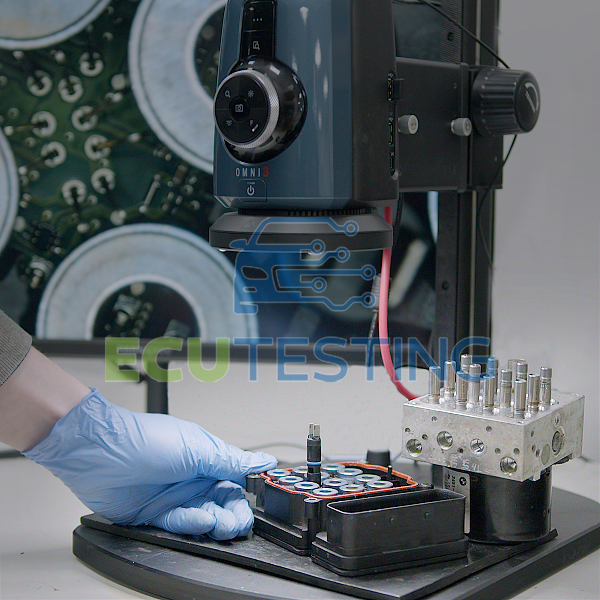

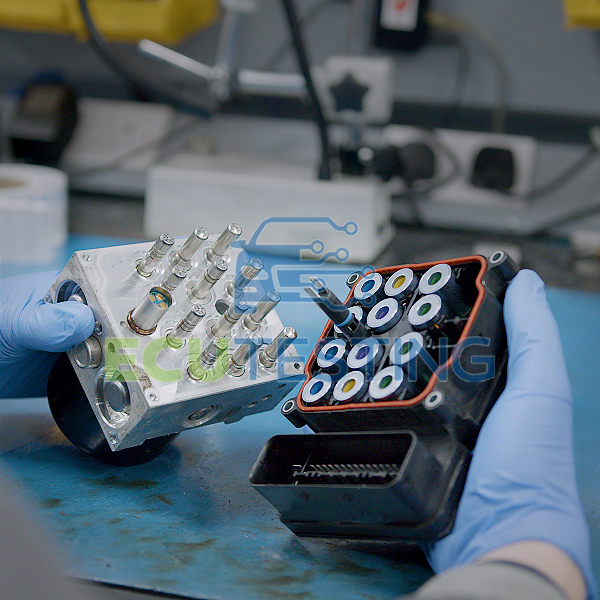

During testing the VW T5 Transporter ABS unit is run on our state of the art, custom built HIL (Hardware In-the-Loop) testing rig. The ABS will be tested under real-world load and driving conditions, which will identify any faults within the unit. Once all internal faults have been identified, our technicians will rebuild the unit and replace all commonly failing components with versions that are higher rated than standard, and then extensively re-test to ensure that no faults remain.



Programming:

This unit is coded on installation to the vehicle, however, during the testing and rebuilding process we retain all coding so that the ABS is ready to go, once it is physically installed back onto the vehicle.



Quality:

Our strict quality control ensures that only the highest level of work is carried out, in order to meet our lifetime warranty standards, which results in a defect rate of 0.49% on all of our rebuilds. We are also proud to be used as the main remanufacturing service provider for leading franchise dealerships and specialists across the world.



Warranty:

Lifetime unlimited mileage*



Price and product info: VOLKSWAGEN TRANSPORTER 1.9 - 3.2 TDI PD ABS (PUMP & ECU/MODULE COMBINED)



How do I get my unit rebuilt?

Pay for the rebuild here: Get yours rebuilt

Print the payment/booking confirmation email.

Package the ABS pump and module inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your ABS pump with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)



What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the ABS pump and module inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your ABS and call you to advise on the outcome of testing, if your ABS pump is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your ABS pump and return it to you with an unlimited mileage warranty.



If you require further information regarding this VW T5 Transporter ABS then please contact us.

Volkswagen Products/Services

AMAROK

ARTEON

BEETLE

BORA

CADDY

CALIFORNIA

CARAVELLE

CARAVELLE T4

CC

CRAFTER

EOS

FOX

GOLF

GOLF PLUS

JETTA

LUPO

MULTIVAN

PASSAT

PHAETON

POLO

SCIROCCO

SHARAN

T-Roc

TIGUAN

TOUAREG

TOURAN

TRANSPORTER

TRANSPORTER T4

TRANSPORTER T5

TRANSPORTER T5 (FL)

TRANSPORTER T6

Comments on "Volkswagen Transporter T5 ABS pump fault"
ian says: 19/03/2024 22:01:26
My abs has the code 01130, and I cannot perform any output tests. Message says requirements not met. The part number is 7H0 614 111 G, is this rebuildable?
ECU Admin says: 25/03/2024 09:27:17
Hi Ian, we can certainly look at that for you. The rebuild page for your model is here https://www.ecutesting.com/product-catalogue/volkswagen/transporter-t5/abs-pump-ecumodule-combined/amc03173g/
Jennifer says: 10/08/2023 15:26:03
Hi there. I have code 01276 hydraulic pump (intermittent) and the ABS and engine management light are on. Garage has checked wiring which seems to be ok. Part number 7H0 614 111 G. Can I send this to you for testing and repair? Thank you
ECU Admin says: 11/08/2023 16:00:09
Ted says: 20/03/2023 18:21:37
Hi, my vwt5 2.5 2006 abs pump is running continuously can I just send the module for repair. Thanks
ECU Admin says: 23/03/2023 09:59:56
Hi Ted, we would recommend sending the full unit into us for testing. We offer a full rebuild service on this unit.
Adam p says: 16/04/2022 11:37:31
Do u do all pumps for t5 abs systems. Haven't checked mine yet but was just checking as I will get it off if that's the case and send it once I have let u know
ECU Admin says: 19/04/2022 10:01:02
Hi, we certainly do for the majority, just double check your part number online once you have removed it.
Miles Chislett says: 07/07/2019 21:04:14
Can I send just module without pump? What would total cost be with testing and repair - fault code 01130 not a plausible signal. Thanks Miles
ECU Admin says: 08/07/2019 10:14:06
Hi Miles, we would recommend sending the whole unit in (including the hydro-pump) as sometimes the Hydro-pump is also faulty with the fault code you mention. Full price and shipping information can be found here: https://www.ecutesting.com/product-catalogue/volkswagen/transporter/abs-pump-ecumodule-combined/amc334211/
