U0155 and U0121 Ford Focus – Common Instrument Cluster Fault

If you’ve got a non-starting Ford Focus with an erratically behaving instrument cluster and a U0155 or U0121 code stored, you’re not alone. These symptoms are the hallmarks of a common instrument cluster malfunction that plagues 2004-2010 vehicles. Thankfully though, we can resolve this in just 2-3 working days with our comprehensive remanufacturing service.

Shop Now – Ford Focus U0155 & U0121 Solution

The aforementioned symptoms are usually accompanied by a persistent immobiliser light as well as the illumination of various warning lights (like ABS and check engine). This issue is incredibly common and affects a huge amount of Ford Focus owners.

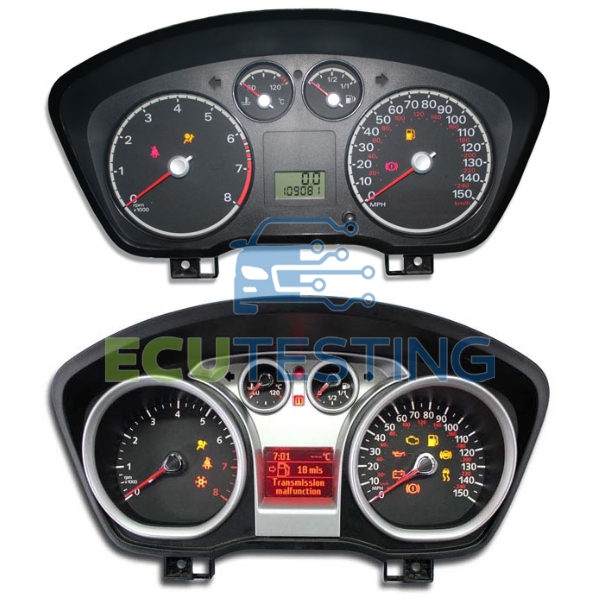

One reason failure is so common is because this defect is spread across two separate clusters that fail in an almost identical manner. Both units are fitted to the second-generation Focus, with the first commonly-failing cluster being found in 2004-2008 models and a second facelifted version found in 2008-2010 models.

Both units malfunction due to similar internal failures and no matter which one your Ford Focus has, send it to us for testing and we’ll resolve your U0155 and U0121 fault for good.

Ford Focus U0155 and U0121 fault explained
These dashboards fail as a result of internal weaknesses, which are exposed over time by heat cycles, vibration and age-related fatigue. Unfortunately, this occurs much earlier in the vehicle’s lifetime than you’d hope. As a result, the instrument cluster is unable to function properly which leads to a variety of frustrating symptoms.

When paired with an aforementioned performance-related symptom, a sure sign that your Ford Focus’ issues stem from a defective instrument cluster is the presence of two diagnostic trouble codes:

• U0155 - Lost Communication with Instrument Panel Cluster Control Module
• U0121 - Lost Communication with ABS

As indicated by your diagnostic tool, both codes indicate there’s a communication issue at play. As you can imagine, the dashboard relies on communication with a large variety of modules in order to display live vehicle performance data to you via its dials and LCD. As the instrument cluster is such an active node on the CAN bus, if it begins communicating erratically or not at all, other control modules are going to notice. So when your Ford Focus’ internal fault develops and the cluster loses functionality, other ECUs detect this momentary drop in communication and store a U0155 code.

Your Ford Focus’ U0121 code is slightly more deceptive due to its ABS-related description, but it actually stems from the very same malfunction within the dashboard. As mentioned, the instrument cluster is a key communicator via the CAN bus, and when it fails it can disrupt communication between other control modules too – such as the ABS unit. This is why in some cases a defective Ford Focus dash will cause a U0121 code to store, although U0155 is much more common.

Of course, if your instrument cluster is fully functional, you’re experiencing no issues starting your Ford Focus, you have an ABS light on and the only code stored is U0121, it’s unlikely your dashboard is at fault. It’s important to only consider cluster failure in the presence of U0121 when you’re experiencing any of the dashboard-related symptoms mentioned above or listed below.

We remanufacture a lot more than dashboards for the Ford Focus, and for many more codes than just U0155 and U0121. If you suspect a control module is causing you problems, browse our Ford product catalogue or send your unit to us using this test form.

How to resolve the U0155 & U0121 Ford Focus fault
Once you’ve traced your symptoms back to a defective instrument cluster, you might be tempted to replace it with a brand new one. However, this is not the most effective solution to resolve your issues long-term.

Many affected Ford Focus owners make this very mistake only to find their cluster is defective once more and the U0155 and U0121 codes have returned before long. This is because the root cause of failure is internal to the cluster, and the same defect is often present in replacement units. Inevitably, this solution wastes time, costs a fortune and creates a load of unnecessary stress.

This is why we’ve developed a remanufacturing solution for Ford Focus instrument clusters to resolve your U0155 and U0121 quickly, affordably and properly.

Our Ford Focus U0155 & U0121 Solution

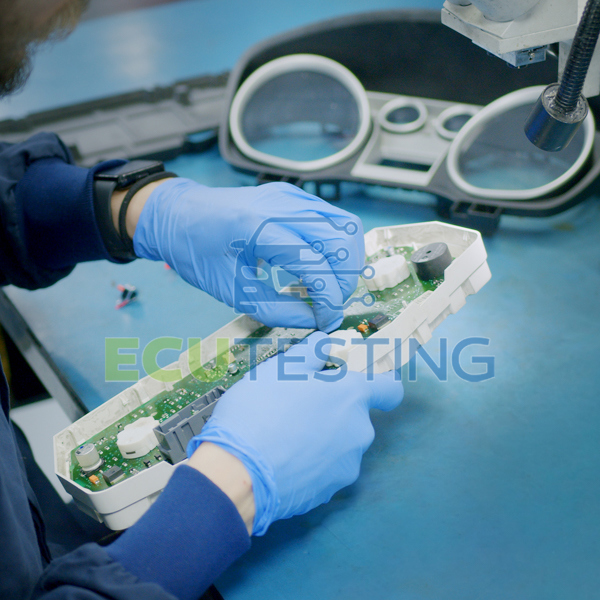

If you send your unit to us, it’ll be analysed on custom-built testing rigs which are proficient in locating the root cause of your issues. Our expert technicians will then get to work remanufacturing your cluster with state-of-the-art equipment and the very latest techniques.

Our entire process is geared towards longevity so that your Ford Focus is free of U0155 and U0121 for good. We’ll even provide an unlimited-mileage lifetime warranty too just to make sure. We also preserve all coding information and immobiliser integrity, allowing you to refit your dashboard as soon as you receive it back.

Resolve U0155 and U0121 properly, have your Ford Focus’ instrument cluster remanufactured in just 2-3 working days by completing this test form.

Common failure symptoms:

• No start
• Engine cutting out
• Various warning lights illuminating at once
• Immobiliser light flashing
• Loss of one or more gauges

Common fault codes:

• U0155 - Lost Communication with Instrument Panel Cluster Control Module
• U0121 - Lost Communication with ABS
• U1900 - CAN Communication Bus Error
• P1260 - Theft Detected, Vehicle Immobilised
• U0001 - High Speed CAN Bus
• U0140 - Lost Communication with BCM
• U2510 - Invalid Security Data Received From PCM
• U2012 - CAN Communication Bus Error
• U2023 - Vehicle Communication Network Error
• U2202 - Invalid Configuration Data Received From PCM

*These are just a few affected part numbers. Browse our product catalogue for the full range.

Video:

Test and rebuild:

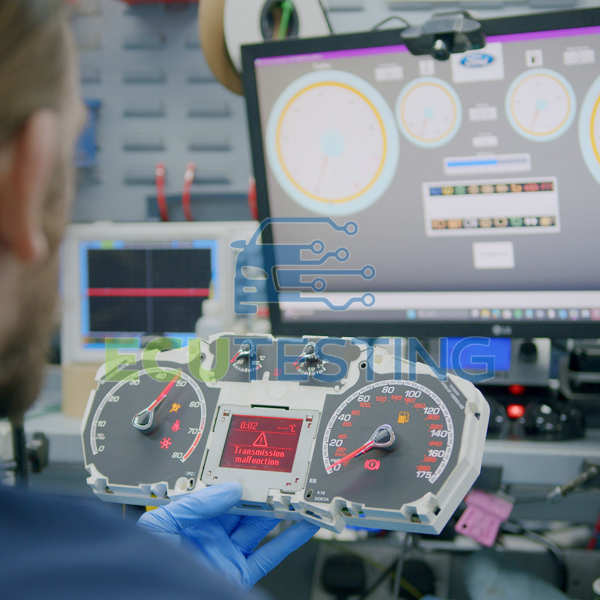

All Ford Focus instrument clusters are comprehensively tested before and after the remanufacturing process - this ensures functionality is restored with longevity in mind.

Programming:
All programming information stored in the unit when you send it to us will remain intact. This means you’ll be able to refit your dashboard straight away as soon as you receive it back.

Quality:
Providing a high-quality service is our priority. Thanks to rigorous quality control procedures we’ve achieved an industry-leading defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the instrument cluster inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your dashboard with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the unit inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your cluster and call to inform you of the outcome of testing. If your dash is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Ford Focus instrument cluster fault then please contact us.
