P1260 & U2510 – Ford Focus Instrument Cluster Fault

Has your Ford Focus’ instrument cluster malfunctioned and led you to uncover stored codes for P1260 or U2510? This is common amongst 2004-2010 owners and in severe cases it’ll prevent the vehicle from starting. Don’t worry though, we’re the experts at remanufacturing second-generation Ford Focus dashboards in just 2-3 working days.

Shop Now – P1260 & U2510 Ford Focus Solution

Instrument cluster failure is a widespread issue for Focus owners due to the fact the second-generation model was fitted with two separate commonly-failing instrument clusters. The first of which belongs to the 2004-2008 Focus and is also fitted to the 2003-2007 C-Max. The second commonly-failing cluster is actually a facelifted version meaning internally it’s virtually identical – find it on the 2008-2010 Focus as well as the 2007-2011 C-Max and release Kuga (2008-2012).

Failure of either unit can prevent the Ford Focus from starting, as well as causing P1260, U2510 and a whole load of other issues. Following a malfunction, it’s common for the immobiliser light to flash and for a variety of warning lights to illuminate. These misleading warning lights can lead affected owners into misdiagnosing their symptoms, which is why we’d recommend making use of our comprehensive testing service.

No matter which dashboard your 2004-2010 Ford Focus has, send it to us and we’ll tell you conclusively whether it’s the source of your P1260 and U2510 DTCs. If it is, have it remanufactured in just 2-3 working days with a lifetime warranty included by completing this test form.

Ford Focus P1260 & U2510 Fault Explained
The reason these control units fail so often is due to their failure-prone inner circuitry. As these control units age, repeated power cycles, heat and vibration fatigue and the strains of everyday use expose these weaknesses. Unfortunately, this internal degradation occurs sooner than you’d expect, causing the unit to partly or completely malfunction and trigger the aforementioned symptoms.

While an engine struggling to start or a few confusing warning lights could be caused by anything, the presence of two diagnostic trouble codes points the finger squarely at your Ford’s dash:

• P1260 - Theft Detected, Vehicle Immobilised
• U2510 - Invalid Security Data Received From PCM

As you’ll notice by the accompanying messages of these two codes, dashboard failure significantly disrupts immobiliser authorisation.

You might know already that in Ford vehicles, the instrument cluster is a part of the PATS (Passive Anti-Theft System). PATS is an engine immobilisation system designed to prevent anyone from starting the engine without the presence of the vehicle’s uniquely-coded key fob. This functionality is integrated into the cluster, which verifies the key transponder’s coded signal and sends confirmation to the engine ECU to authorise start-up.

When your Ford’s instrument cluster is internally defective, its ability to communicate with the engine ECU is compromised, disrupting this process. This is why your Ford’s ECU stores a U2510 code, indicating it received invalid security data from the cluster. As the immobiliser validation check has failed, the ECU interprets this as a theft attempt, meaning P1260 will store too.

Like many immobilisers, when the requirements to disable the system are not met, start-enabling functionalities like engine fuelling and starter motor operation are disabled. This is why internal degradation of your Ford’s instrument cluster ultimately leaves you unable to start your Focus with codes like P1260 or U2510 stored.

How to resolve the P1260 & U2510 Ford Focus fault
Having confined their symptoms to a defective instrument cluster, most owners choose to simply replace it with a brand-new one. However, this is not only extortionately expensive, but it doesn’t resolve the fault for good.

As we mentioned, these units fail as a result of internal weaknesses which are often present in replacement clusters. This means you’ll fork out for a new dashboard and pay extra to have it coded to your Ford Focus, only for it to fail again in the near future and cause your P1260 or U2510 DTCs to return.

We think Ford owners deserve better than this frustrating cycle, which is why we’ve developed a comprehensive remanufacturing service for second-generation Ford Focus instrument clusters.

Our Solution

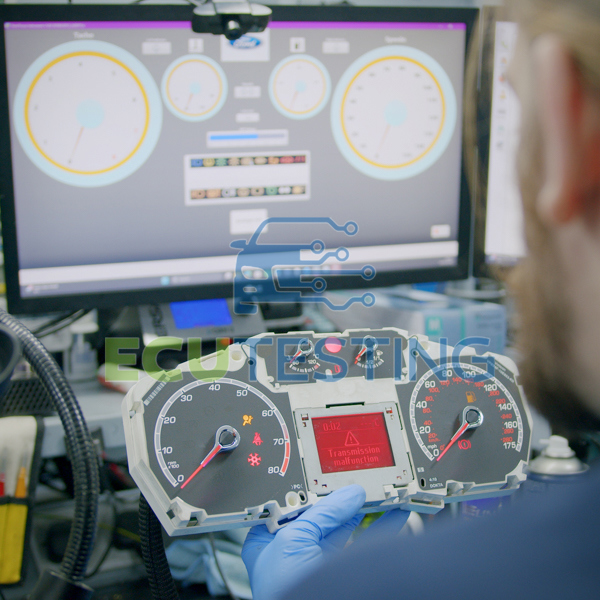

When your instrument cluster arrives with us, our expert technicians will examine it using bespoke testing rigs. Our start-of-the-art rigs allow us to test under realistic operating conditions to pinpoint the root cause of failure quickly and accurately.

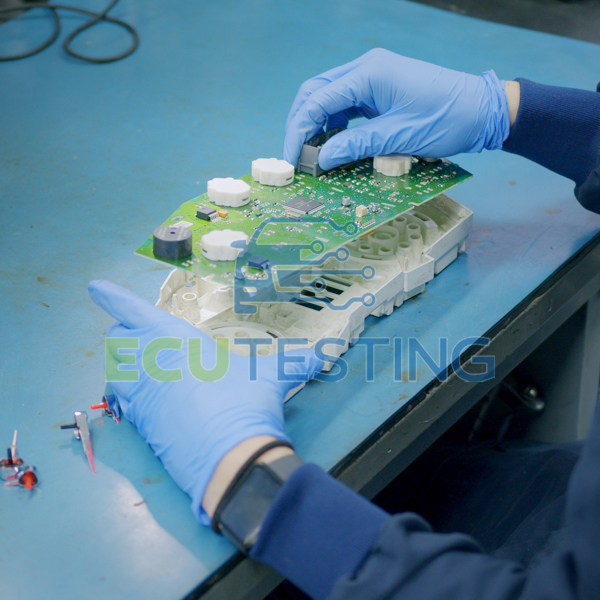

Your dashboard will then be remanufactured with longevity in mind, to keep your Ford Focus on the road and free of P1260 and U2510 for many years to come. We’ll even cover you with an unlimited-mileage lifetime warranty for further peace-of-mind. You won’t need to recode the rebuilt cluster back to your vehicle and we’ll even preserve immobiliser integrity – just plug-and-play.

Resolve your P1260 and U2510 codes properly, have your Ford Focus’ instrument cluster remanufactured by the experts in just 2-3 working days – complete this test form to get started.

Common failure symptoms:

• No start
• Engine cutting out
• Various warning lights illuminating at once
• Immobiliser light flashing
• Loss of one or more gauges

Common fault codes:

• P1260 - Theft Detected, Vehicle Immobilised
• U2510 - Invalid Security Data Received From PCM
• U1900 - CAN Communication Bus Error
• U0155 - Lost Communication with Instrument Panel Cluster Control Module
• U0121 - Lost Communication with ABS
• U0001 - High Speed CAN Bus
• U0140 - Lost Communication with BCM
• U2012 - CAN Communication Bus Error
• U2023 - Vehicle Communication Network Error
• U2202 - Invalid Configuration Data Received From PCM

*This is just a small amount of affected part numbers. If yours isn’t listed above, browse our product catalogue for the entire range.

Videos:

Test and rebuild:
We test all control modules on custom-built testing rigs to uncover hard-to-find faults. All units are tested before and after the rebuild process to ensure they’re fully functional and road-ready.

Programming:
Unlike when sourcing a replacement, you won’t have to recode your rebuilt cluster back to your vehicle. Save even more time and money by being able to refit your rebuilt unit as soon as you receive it back from us via a next-day courier.

Quality:
We pride ourselves on providing a high-quality service. Thanks to strict quality assurance procedures that we’ve refined over many years, our company defect rate is now as low as 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the Ford Focus dash inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your cluster with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the dashboard inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your instrument cluster and call to inform you of the outcome of testing. If your unit is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your control module and return it to you with an unlimited mileage warranty.

If you require further information regarding this Ford Focus instrument cluster fault then please contact us.
