U0001 & U2012 Ford Focus – Common Instrument Cluster Fault

Has your Ford Focus’ dashboard been behaving erratically and you’ve found CAN bus fault codes like U0001 and U2012 stored? This sounds like a typical case of instrument cluster failure that affects 2004-2010 models. This issue is common and it usually results in the vehicle not starting, if this hasn’t happened already. Don’t worry though, we’re the experts at remanufacturing these units and it only takes us 2-3 working days.

Shop Now – U0001 & U2012 Ford Focus Solution

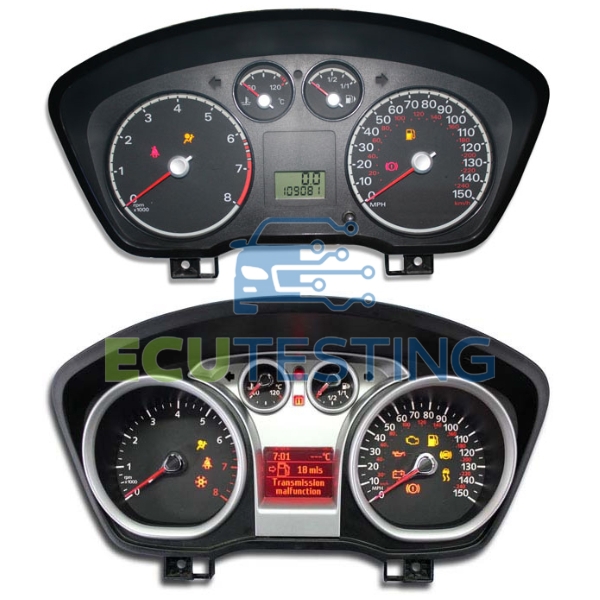

This is a widespread issue and it’s due to the fact the second-generation Ford Focus was fitted with two separate commonly-failing dashboards. The two instrument clusters fail almost identically and they’re both leading causes of U0001 and U2012 DTCs in the Ford Focus.

You’ll find the first of these problematic units fitted to Focus vehicles manufactured between 2004-2008 as well as the 2003-2007 C-Max. The second commonly-failing cluster is only an issue for Focus vehicles manufactured between 2008-2010 – again, you’ll also find them on the C-Max (2007-2011) and Kuga (2008-2012).

When failure strikes, a whole range of issues prevail. In many cases, the vehicle cuts out and refuses to start due to being immobilised. It’s also common for unit failure to cause a range of warning lights to confusingly illuminate and for vague DTCs like U0001 and U2012 to store in the Ford Focus.

Inevitably, this can make diagnosing Ford Focus instrument cluster failure quite difficult and long-winded. Thankfully, we’ve developed a comprehensive testing service for this reason - just fill out this test form to send your dashboard to us. We’ll do the hard work and tell you whether the instrument cluster is the source of your Ford Focus’ U0001 and U2012 problems. If it is, we’ll remanufacture it for you within 2-3 working days and cover you with a lifetime warranty.

Ford Focus U0001 & U2012 fault explained
The reason these instrument clusters fail so frequently is due to their internal electrical design which is susceptible to degradation over time. These internal fragilities become exposed much earlier in the vehicle’s lifetime and cause the unit to fail after just a few years.

One sign that your Ford Focus’ dashboard has developed this common internal malfunction, is the presence of these two diagnostic trouble codes:

• U0001 - High Speed CAN Bus
• U2012 - CAN Communication Bus Error

As you’ll have worked out, these codes relate to a CAN bus issue. But before you get your multimeter out and start probing around trying to locate a wiring issue, you need to know that these DTCs are very commonly caused by a defective instrument cluster in the aforementioned vehicles.

As mentioned, these clusters fail due to internal degradation which prevents the unit from carrying out various key functions, such as communicating via the CAN bus.

Your Ford Focus’ U0001 DTC essentially means the CAN bus isn’t behaving correctly on the whole, and this is often the result of a module on the network disrupting communication – in many cases the instrument cluster. It’s common to find this code stored in modules like the engine ECU or ABS module when the dashboard is defective.

The U2012 DTC is very similar, but you’ll find it stored in your Ford Focus’ instrument cluster when it’s malfunctioned. This code indicates that CAN bus communication has been compromised on a module-level, again in this case it’s your dash.

Of course, it’s important to only suspect your cluster is faulty in the presence of a CAN-bus-related DTC when paired with one of the aforementioned performance issues (random warning lights, failing gauges, immobiliser issues or no start). To confirm the instrument cluster has caused your issues, make use of our testing service.

How to resolve the Ford Focus’ U0001 and U2012 DTCs
When met with these symptoms, many affected owners choose to replace their defective cluster with a brand-new one. However, we wouldn’t recommend this as replacements come with the very same internal profile that’s susceptible to developing defects. This means a replacement unit could set you back thousands, only to fail again in the near future.

We think Ford owners deserve better than this, which is why we’ve developed a remanufacturing solution for the two instrument clusters in question.

Our U0001 & U2012 Ford Focus solution

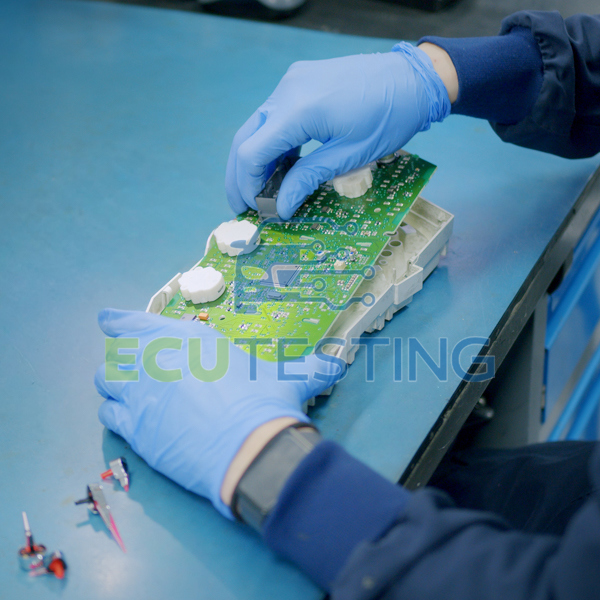

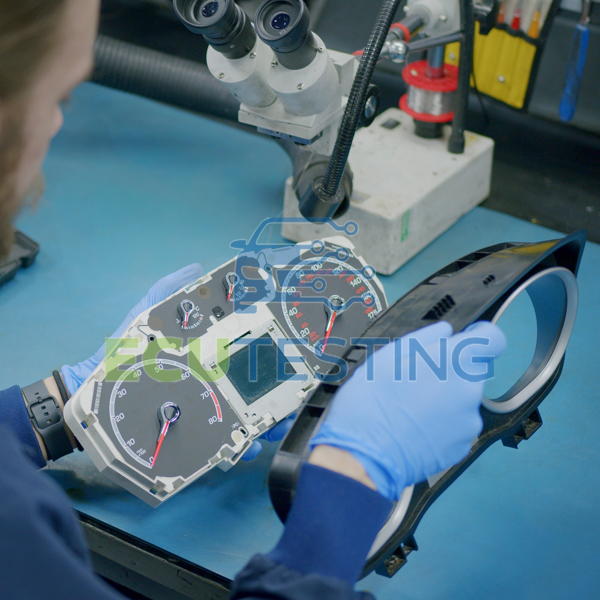

When you send your faulty dashboard to us, we’ll analyse it on our custom-built testing rigs which examine the unit under realistic operating conditions. This allows us to locate all underperforming areas of inner circuitry so that we can swiftly get to work rectifying them.

We rebuild all Ford dashboards with top-grade equipment and advanced remanufacturing techniques. We carry out all rebuilds with longevity in mind to ensure your cluster is rebuilt to last, this means your Ford Focus will be free of U0001 and U2012 for years to come. You’ll even receive unlimited-mileage lifetime cover, you won’t need to recode the dashboard back to your vehicle and the entire process takes just 2-3 working days.

Resolve your Ford Focus’ U0001 and U2012 DTCs properly and have your instrument cluster remanufactured by the experts - complete this test form to get started.

Common failure symptoms:

• No start
• Engine cutting out
• Various warning lights illuminating at once
• Immobiliser light flashing
• Loss of one or more gauges

Common fault codes:

• U0001 - High Speed CAN Bus
• U2012 - CAN Communication Bus Error
• U1900 - CAN Communication Bus Error
• U0155 - Lost Communication with Instrument Panel Cluster Control Module
• U0121 - Lost Communication with ABS
• P1260 - Theft Detected, Vehicle Immobilised
• U0140 - Lost Communication with BCM
• U2510 - Invalid Security Data Received From PCM
• U2023 - Vehicle Communication Network Error
• U2202 - Invalid Configuration Data Received From PCM

Videos:

Test and rebuild:
All Ford instrument clusters are tested on custom-built rigs before and after the rebuild. This allows us to confirm the root cause of failure and verify that your remanufactured unit is fully-functional and ready for action.

Programming:
You won’t need to worry about having to recode the unit when you receive it back as our process preserves all coding information and immobiliser integrity.

Quality:
We pride ourselves on providing an excellent service, hence we offer a lifetime warranty on all rebuilds - this is demonstrated by our industry-leading defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the instrument cluster inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your unit with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the Ford dashboard inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control unit and call to inform you of the outcome of testing. If your unit is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Ford Focus instrument cluster fault then please contact us.
