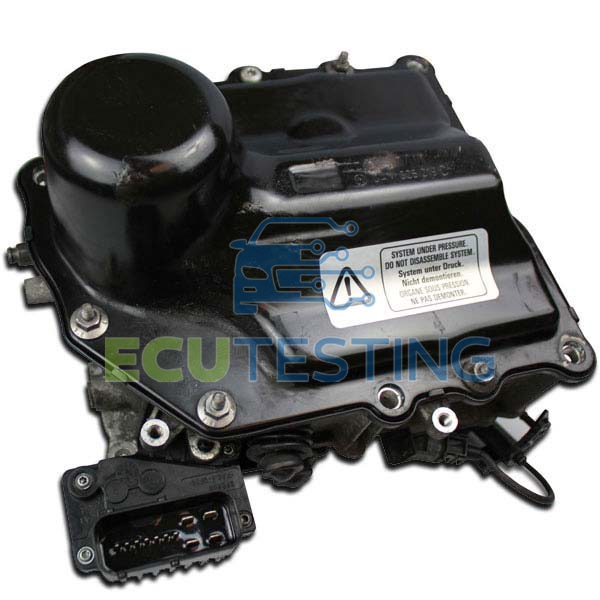

P189C Volkswagen DTC – Common DSG7 Mechatronic Fault

If you’ve lost functionality of your Volkswagen’s direct-shift gearbox (DSG) and you’ve got a P189C DTC stored, you’re almost certainly dealing with a common DSG7/DQ200 mechatronic fault. Don’t worry, this doesn’t have to be as expensive or as time-consuming as it sounds. We remanufacture these units in just 2-3 working days with a lifetime warranty included.

Shop Now – P189C VW DSG7 Solution

The DQ200 is a 7-speed dual-clutch transmission that’s fitted to a variety of VAG models manufactured after 2008. Its mechatronic unit, which is responsible for managing this intricate transmission system, is highly susceptible to internal faults.

A key indicator your DSG7 mechatronic has malfunctioned is the presence of the P189C diagnostic trouble code. Other signs of failure include a loss of drive, a loss of gears, an illuminated transmission warning light and a loss of communication with the transmission system.

If you’re experiencing any of these symptoms, fill out this test form and send your mechatronic unit to us for a long-lasting solution.

Which Volkswagen vehicles are affected by the P189C DSG7 fault?
The DQ200 (also referred to as the DSG7) is one of the most widely used DSGs across the VAG range. Unfortunately, this also means failure is widespread and incredibly common for a number of vehicles.

For example, the DSG7 is commonplace in the universally popular Mk6 and Mk7 VW Golf. The DQ200 is only fitted to 7-speed models manufactured between 2008-2017 with lower-torque engines (sized between 1.0L-1.6L). VW Golfs of this generation with 2.0L engines and above are typically fitted with the greater-torque-bearing DQ250 – which is also known to fail.

The DSG7 is fitted to a variety of VW models, like the Mk5 VW Polo and first-generation Touran, both of which are just as susceptible to the P189C fault. Find a complete list of affected vehicles below or browse our product catalogue.

Thankfully, we remanufacture the DSG7 mechatronic unit for all Volkswagen models affected by the P189C fault - just complete our test form to get started.

Volkswagen P189C DSG7 fault explained
The reason the DSG7’s mechatronic unit is so susceptible to failure is due to an internal design flaw, which inevitably leads to a complete loss of unit functionality later down the line.

While this defect can present itself in a variety of ways, one fault code in particular indicates the malfunction has manifested itself:

• P189C – Function Restriction due to Insufficient Pressure Build-Up

As indicated by the DTC’s accompanying message, P189C indicates your Volkswagen’s DSG is experiencing hydraulic pressure issues – and this all stems from the DSG7’s internal fault.

You might know already that the mechatronic unit is made up of various hydraulic and electrical control components, one of which is a TCU that’s essentially the brains of the entire DSG system.

As the TCU attempts to increase hydraulic pressure in the mechatronic unit, but sees that this is not happening sufficiently despite its command, it restricts gearbox functionality as a precaution. To the driver, this translates as limp mode or gearbox emergency mode, and of course, if the DSG is unable to build hydraulic pressure, the gears and clutches won’t be able to engage either.

As part of the damage mitigation process taken by the TCU, the hydraulic pump is also put into a protective state – this is evidenced by the presence of a P17BF DTC.

How to resolve the P189C VW DSG7 fault
Having diagnosed their symptoms as a defective DSG mechatronic unit, many affected owners look to replace their unit with brand-new. However, this is not the most effective solution and it can actually cost you significant time and money later down the line.

You’ve got to understand that the DSG7 fails as a result of an internal defect it leaves the factory with. This means replacement units may well carry the very same issue, leading to future failure.

To resolve your symptoms properly, you should always have the mechatronic remanufactured to overcome the internal fault for good.

Our solution
Thankfully, we’ve developed a specialist remanufacturing service for the DSG7 mechatronic which excels at resolving P189C DTCs in Volkswagen vehicles.

Simply send us your mechatronic unit and we’ll analyse it on our custom-built state-of-the-art testing rigs. Our rigs can simulate realistic operating conditions, allowing us to accurately identify hard-to-find faults.

Our expert techs will then get to work remanufacturing your control unit with higher-than-OEM-standard components to restore long-lasting functionality. You’ll even receive an unlimited-mileage lifetime warranty, keeping you covered for good. We only take 2-3 working days to carry out this service and you won't need to recode the unit when you receive it back.

Resolve your Volkswagen’s P189C code the right way, have your DSG7 mechatronic remanufactured by the industry experts – just complete this test form to get started.

Common failure symptoms:

• Loss of gears
• Loss of drive
• PRNDS light on
• Engine warning light on
• EPC warning light on
• Gear symbol/transmission warning light flashing
• No comms with gearbox system
• No comms with diagnostic tools

Common fault codes:

• P189C - Function Restriction due to Insufficient Pressure Build-Up
• P17BF - Hydraulic Pump Play Protection
• P0562 - System Voltage Low
• P1604 - Internal Control Module
• P0841 - Transmission Fluid Pressure Sensor: Implausible Signal
• P1895 - Restriction due to Pressure Drop

Videos:

Reinstallation guide:

Test and rebuild:

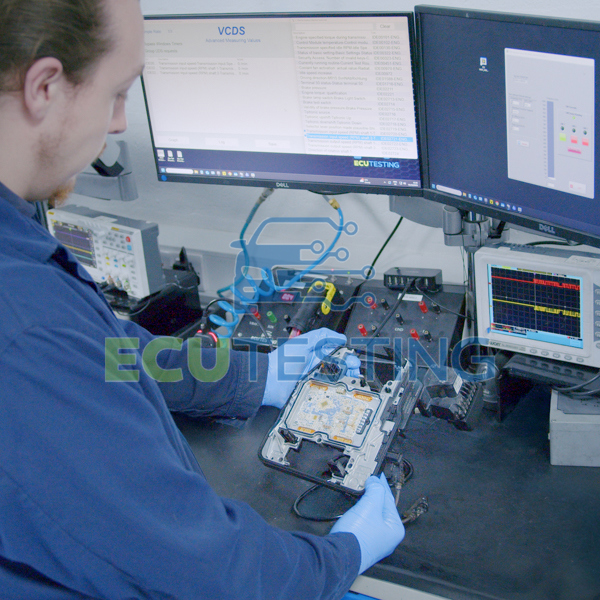

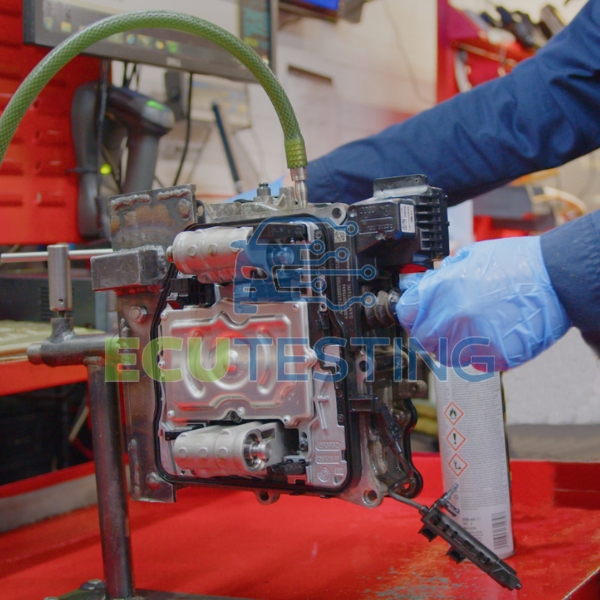

All mechatronics are tested on specialist rigs and are remanufactured with top-grade components. This allows us to identify the root cause of failure accurately and to resolve it with longevity in mind.

Programming:
All programming information is preserved throughout our process, meaning you won’t need to have the rebuilt mechatronic programmed back to your vehicle.

Quality:
We strive to provide an excellent service to the industry, which is evidenced by our strict quality assurance practices culminating in an industry-leading defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the mechatronic unit inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your mechatronic with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the DSG mechatronic inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control unit and call to inform you of the outcome of testing. If your unit is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your mechatronic and return it to you with an unlimited mileage warranty.

If you require further information regarding this Volkswagen DSG7 P189C fault then please contact us.
