Vauxhall Easytronic Gearbox Clutch Actuator transmission problems

Vauxhall Easytronic clutch actuator fault

No start and 'F' on the dash

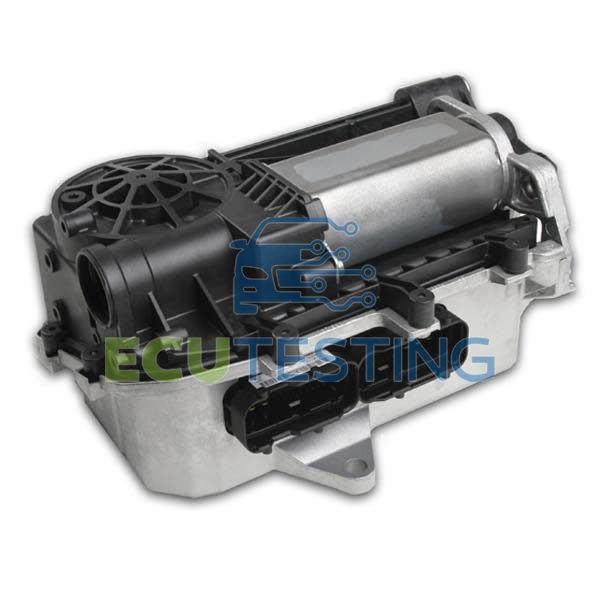

This Vauxhall Easytronic gearbox clutch actuator control module is a very common fault for Vauxhall's with Easytronic transmission. When this actuator fails the letter ‘F’ will be displayed on the dash and the vehicle will not start.

We are currently rebuilding customers own units within 2-3 working days and providing a Lifetime warranty*


Due to the fact that these units are electronically coded to your vehicle we are not able to supply a replacement unit as it would prevent your car from running, for this reason a second-hand part would not work either.




Common Failure symptoms:

  • ‘F’ warning on display
  • No start


Common fault codes:

  • P1607 – Clutch Actuator Malfunction / Position Control Error
  • P1732 – Gearbox Parameters Limit Reached
  • P1735 – Gearbox Parameters Not Learned


Common failing part numbers:

  • 9126186
  • 0132900002
  • 1208067
  • AG9D300711A
  • GID300607A

(This is a very small selection of part numbers – please select your model above for more information)


Grinding noises from your transmission? Gears banging into place? You can probably fix this yourself and save a load of time and money. We'll show you one of the most common Easytronic clutch actuator faults and how you can fix it…


How to bleed the clutch actuator:


Test and rebuild:

Each Vauxhall Easytronic clutch actuator is rigorously tested on our bespoke Easytronic gearbox testing rig both before and after rebuild to ensure that the actuator meets OEM specifications. During rebuild only the highest rated components are used to comply with our lifetime warranty standards.



During test and rebuild all programming is retained – no need for coding when you receive the clutch actuator back from us.



Lifetime unlimited mileage*


How do I get my unit rebuilt?

To pay for the rebuild select your model above and then click: Get yours rebuilt

Print the payment/booking confirmation email.

Package the Vauxhall Easytronic clutch actuator inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your clutch actuator with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)


What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the Vauxhall Easytronic clutch actuator inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your clutch actuator and call you to advise on the outcome of testing, if your actuator is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your clutch actuator and return it to you with an unlimited mileage warranty.

If you require further information regarding this Vauxhall Easytronic clutch actuator, then please contact us.

Vauxhall Products/Services



























Comments on "Vauxhall Easytronic Gearbox Clutch Actuator transmission problems"
Noori says: 05/09/2023 23:47:16
Hi there, I have 2010 Meriva A 1.6 easytronic, and gearbox is noise and making whining or grinding noise,but it changes all the gear fine. Also on the cluster only shows the spanner light Not F,and manual mode doesn't work? Is that fixable?
ECU Admin says: 06/09/2023 09:37:50
Hi Noori, we would recommend to scan the vehicle with diagnostics. You’re welcome to email us the results and we can take a look for you, contact us
Mani says: 28/03/2023 23:08:58
I have 2011 Vauxhall combo 1.3 semi automatic. A sign of (F) shows on dashboard when starting. It doesnt start. When I put the code reader it gives P1607 and P1722. The van does start sometimes and work properly but other times it give problem.
ECU Admin says: 29/03/2023 09:32:14
Hi Mani, reads like you have a fault with your clutch actuator. Get that over to us for test and rebuild here:
Khalid says: 25/01/2023 13:05:44
I have Vauxhall Astra Easytronic 05 Plate, when I put the gear on A (forward) the car doesn't go forward and on dashboard the letter changes from A to N after couple of second but when I put the gear on R (reverse) the car reverses normally with a gearing noise when i put the gear on reverse. I switch the engine off for a 10-15 minutes and the car back to work normally (forward and reverse) with no issue. Happened twice in last 2 months, it works normally now but no idea when happens again.
ECU Admin says: 26/01/2023 09:33:58
Hi Khalid, we would suggest to have the vehicle scanned for historic fault codes. Once you have this you’re more than welcome to email us with the results and we can advise you further, contact us
Gary says: 05/05/2020 09:40:15
I have Vauxhall Astra semi auto 54 plate that has two horizontal lines like this - - on dash and sometimes in A4 theres no response from gearbox control unit so am a bit confused on weather its the actuater ,as had read that it probably is Ime stumped
ECU Admin says: 06/05/2020 09:21:35
Hi Gary, you may be experiencing a clutch actuator malfunction. It would be advisable to have the vehicle scanned for fault codes; these will help to diagnose the issue before removing any part from the vehicle. Our Vauxhall Astra clutch actuator rebuild options can be found here:
Nenad Tasic says: 11/11/2019 23:41:47
I have Opel Meriva 1.6 with automatic transmission. I have all symptoms that are mentioned here. Is this part same with Vauxhall one?
ECU Admin says: 12/11/2019 14:02:42
Hi Nenad, Vauxhall and Opel are the same manufacturer, just named differently based on your country. We can certainly help you out, please see the following for more information:
Terence Pope says: 31/10/2019 06:41:08
Hi I have this problem 2007 zafira semi auto-How much do you charge for re-con gearbox rebuild? And of course can you ship it?to me,
ECU Admin says: 06/11/2019 15:04:19
Hi Terence, we offer a rebuild service on the Zafira clutch actuator, but do not offer mechanical services such as gearbox rebuilds. For more information, prices and shipping please see the following page:
Mark Dunsmore says: 28/10/2019 12:16:52
My clutch activator unit is got a malfunction on my astra wondering how to get it repaired
ECU Admin says: 06/11/2019 15:50:58
Hi Mark, for information on Vauxhall Astra clutch actuators please see the following link:
David morton says: 01/09/2019 14:56:27
I have a 56 plate 1.8 semi auto the car will drive and change gear but then encounters problems it flashes f and you can't select neutral or any gears
ECU Admin says: 02/09/2019 09:40:28
Hi David, sounds like you may have the common clutch actuator fault. We can test and rebuild this for you, just select your vehicle above or complete our test form to begin the process:
