Fiat 500 B10AA-4A Fault
Have you got a flashing mileage display and a B10AA-4A code stored in a 2007-2016 Fiat 500? This is a common sign of control module failure, typically the Blue&Me module or airbag ECU. Thankfully, we remanufacture both of them in just 2-3 working days.
Shop Now – B10AA-4A Fiat 500 Solution

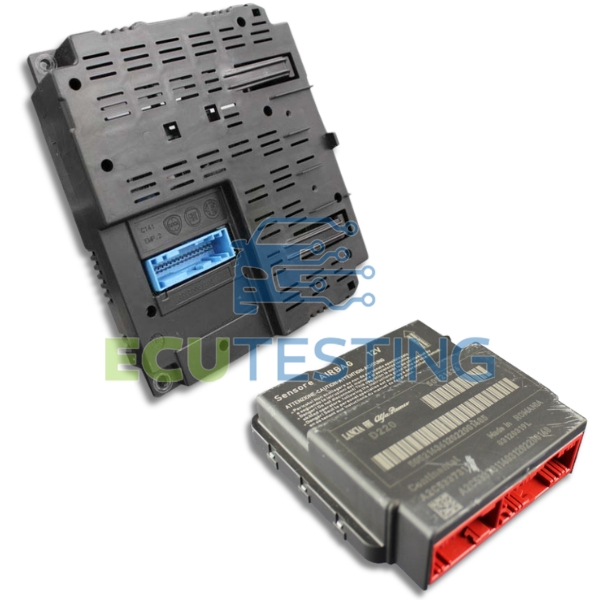

When this code is present, it usually means a defective control module has stopped communicating with the body control module. In most Fiat 500s, it’s the Blue&Me control module that fails and causes your B10AA-4A code to store. In this case, the code is accompanied by a flashing mileage display and a loss of Bluetooth connectivity.
If your Bluetooth connection is fine and you’ve got an airbag warning light, you should send your airbag module in for testing as this is another leading cause of B10AA-4A in Fiat 500s.
To understand exactly which control module is causing your Fiat 500’s B10AA-4A code, simply follow the guide below, and then fill out this test form to send us either your Blue&Me or airbag module:
SHOP NOW – Blue&Me Module Rebuild
SHOP NOW – Airbag Module Rebuild
B10AA-4A Fiat 500 Fault Explained
As pointed out by your diagnostic tool, your Fiat 500’s B10AA-4A code implies the BCM has detected a control module that doesn’t match the vehicle’s stored proxi configuration information:
- B10AA-4A – Check Configuration Failed, Incorrect Component Installed
You might already know that in FCA group vehicles, the proxi alignment procedure is a programming process that synchronises control module configuration data in order for them to communicate effectively with one another. There are various control modules that’re part of this process, such as the Blue&Me module and the airbag module.
Upon each ignition start-up, the BCM carries out a proxi configuration consistency check. The BCM is checking which CAN nodes are present, so if a module is missing or provides an invalid response, a code will store for ‘incorrect component installed’. As well as B10AA-4A storing, your Fiat 500’s instrument cluster will flash the odometer when a proxi configuration mismatch is detected.
When your Blue&Me or airbag module suffers an internal malfunction, it’s rendered completely defective. This means it doesn’t provide a valid response to the BCM’s check, causing the mileage to flash and B10AA-4A to store. It’s no coincidence that when this happens, you’ll also find codes stored for ‘no communication’ with said module, as well as a loss of unit functionality (no Bluetooth connection).
How To Resolve The B10AA-4A Fiat 500 Fault
Having diagnosed their symptoms as being caused by a defective Blue&Me or airbag control module, many Fiat 500 owners choose to replace their unit in the hope that this will resolve their B10AA-4A code. While the code may clear and unit functionality may be restored temporarily, this is not the most effective solution.
These two control modules are particularly susceptible to developing internal faults earlier in their lifetime than you’d expect. This means brand-new replacement units are not only expensive, but they come with a risk of future failure.
Our B10AA-4A Fiat 500 Solution
Instead, we recommend having your defective control module comprehensively tested and remanufactured.

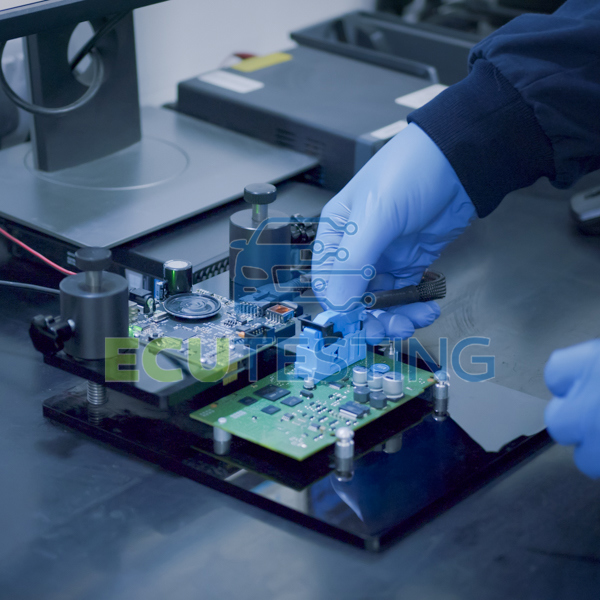

We provide this very service. Our expert technicians will analyse your control unit on hardware-in-the-loop testing rigs to ensure it’s the cause of your Fiat 500’s B10AA-4A code.
Your defective control module will then be remanufactured with higher-than-standard components. This ensures it’ll be much more durable than brand-new units, resolving your symptoms for the long term future.
Our entire process takes just 2-3 working days, you won’t need to recode the rebuilt control module back to the vehicle, and we’ll cover you with our unlimited-mileage lifetime warranty too. Get started today by filling out this test form.

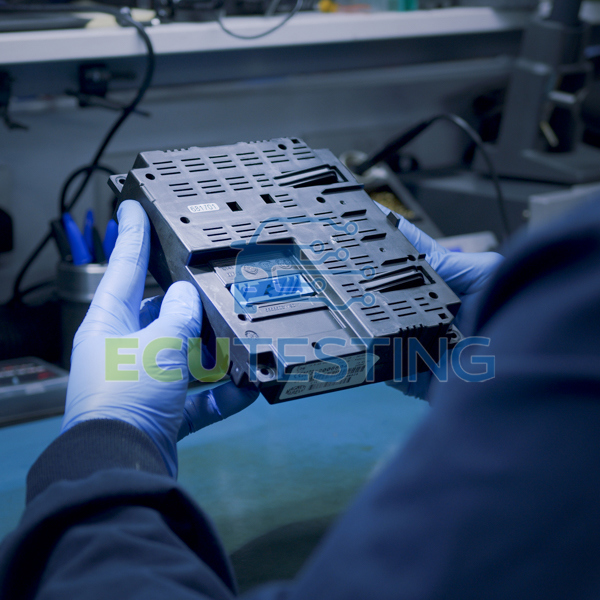

Blue&Me Control Module
Common failure symptoms:
- Flashing mileage display
- Loss of Bluetooth connection
- Loss of steering wheel button functionality
- Battery drain
- No communication with Blue&Me module
Common fault codes:
- B10AA-4A - Check Configuration Failed, Incorrect Component Installed
- U1733-87 – Convergence Telematics Module Missing Message
Location on the vehicle:
It’s always worth consulting manufacturer documentation to determine the Blue&Me module’s location for your specific vehicle. Some models house the unit behind the glovebox, while you’ll find it within the rear passenger-side door panel on other models.
Airbag Control Module
Common failure symptoms:
- Airbag warning light
- Flashing mileage display
- ‘Fuel cut-off unavailable’ message on dashboard
- No communication with the airbag ECU
- SRS/seatbelt warning light
Common fault codes:
- B10AA-4A – Check Configuration Failed, Incorrect Component Installed
- U1726-87 – Lost Communication With ORC
- U0331-81 – FPS Status From BCM
Location on the vehicle:
You’ll find the Fiat 500’s airbag module underneath the centre console, although it’s recommended to check manufacturer documentation for your specific vehicle.
Test and rebuild:
We test all control modules on hardware-in-the-loop testing rigs so that we can examine unit performance under realistic operating conditions. Our expert technicians will even use higher-than-standard quality components when they remanufacture your control module.
Programming:
All programming information is retained throughout our process meaning you can simply refit the rebuilt unit as soon as you receive it back from us.
Quality:
We pride ourselves on providing an excellent service. Our commitment to continuous improvement and rigorous quality assurance practices is evidenced by our defect rate of just 0.49%. As a result, we've become a leading provider of automotive remanufacturing services for thousands of independent specialists worldwide.
Warranty:
Lifetime unlimited mileage*
How do I get my unit rebuilt?
To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.
Print the payment/booking confirmation email.
Package the ECU inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.
Send us your package by tracked courier (the shipping instructions are on the confirmation email).
Once received we will test, rebuild and return your control module with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.
What if I don’t want to pay up front?
This is not a problem, if you prefer this option then follow these steps:
Fill in and submit this test form.
Print the booking confirmation email.
Package the control module inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.
Send us your package by tracked courier (the shipping instructions are on the confirmation email).
Once received, we will test your unit and call to inform you of the outcome of testing. If your ECU is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.
We will then rebuild your control module and return it to you with an unlimited mileage warranty.
If you require further information regarding this Fiat 500 B10AA-4A fault then please contact us.
