DQ250 Mechatronic Repair

Do you have a DQ250-equipped VAG vehicle with an erratically behaving transmission? It’s likely your DQ250’s mechatronic control unit has malfunctioned and is in need of repair. Thankfully, we’re the experts at restoring functionality in just 2-3 working days.

Shop Now - DQ250 Mechatronic Repair

These troublesome control units are a frequent cause of issues in various VAG models manufactured between 2003-2021. Common signs that your DQ250 mechatronic unit is in need of repair include a loss of reverse gear, a stored P174E DTC and the gearbox placing itself into emergency mode.

Thankfully, we’re the experts at testing these intricate units. We’ll let you know whether your DQ250 mechatronic is indeed defective, and whether it can still be repaired. Just complete our short test form to get started.

What is the DQ250?
The DQ250 was the first DSG (direct-shift gearbox) released by VAG to the mass market in 2003. You might also find this gearbox referred to as a ‘DSG6’, referencing the transmission’s 6 gears. Five years later, VAG released the DQ200, a 7-speed transmission which was subsequently dubbed the ‘DSG7’.

Geared towards vastly improving vehicle efficiency, the DQ250 incorporated a wet-clutch design and was capable of handling up to 400 Nm of torque. This made the transmission a suitable choice for many higher-power VAG vehicles in the mid-2000s. This includes the Audi TT (2003-18), the Volkswagen Golf R and GTI (2004-2019), as well as various popular-at-the-time turbodiesel variants of the Octavia and Passat. The DQ250 was fitted to a huge range of vehicles of varying fuel types and engine capabilities, find a complete list lower on this page.

Like all DSGs VAG have produced, the DQ250 relies on a mechatronic unit to control the dual-clutch system. The mechatronic unit combines electrical, hydraulic and mechanical control in order to drive the clutch packs and gear sets. Without a fully functional mechatronic unit, the once streamlined dual-clutch transmission system comes to an abrupt and problematic halt.

Unfortunately, the DQ250 is one of various DSGs that is frequently left in need of a mechatronic unit repair.

DQ250 mechatronic fault explained
In most cases, it’ll be quite apparent that the DQ250’s mechatronic is in need of repair, as the performance of the transmission is often immediately affected.

When failure strikes, it’s common for one or more gears to be lost - this often involves the loss of reverse gear. A defective DQ250 mechatronic can also lead to harsh and erratic shifting, as though the transmission is staying in certain gears for too long, or skipping some altogether. In most cases of failure, these symptoms materialise once the gearbox is warm after repeated use.

Signs of a DQ250 mechatronic fault aren’t always performance-related, you’ll usually be given some indication of an issue via the dashboard too. Typically the transmission and engine warning lights will illuminate and the dashboard will display messages related to ‘gearbox malfunction’ or ‘reverse not available’.

When investigating these symptoms with a diagnostic tool, the presence of a P174E, P174A or P2711 DTC is a strong indicator that the DQ250 mechatronic is in need of repair.

DQ250 mechatronic fault: repair or replace?
Having diagnosed their symptoms as being the product of a DQ250 mechatronic fault, many affected owners consider replacing their unit with a brand-new one. However, this is not the most effective resolution and it might lead to repeat failure later down the line.

What many don’t consider is that these symptoms often stem from the failure of electrical components within the mechatronic assembly. As a replacement mechatronic unit will almost certainly contain the original components it left the factory with, many owners are left vulnerable to the very same issue.

Not only this, but a brand-new DQ250 mechatronic unit can cost you thousands and take an extensive period of time to arrive. Instead, we’ve got a much more efficient solution.

Our solution
We offer a full remanufacturing solution for the DQ250 mechatronic unit to restore functionality properly at a fraction of the cost of a brand-new unit.

We go a step further than standard DQ250 mechatronic repair services. We won’t just patch up the root cause of unit failure, we’ll strengthen all areas of potential weakness so that the control unit remains fully functional for years to come.

We’ve developed bespoke hardware-in-the-loop testing rigs to analyse these mechatronic units under realistic operating conditions. We even remanufacture with higher-than-OEM-standard components to enhance unit durability.

Don’t just have your DQ250 mechatronic repaired, have it remanufactured by the experts in just 2-3 working days with an unlimited-mileage lifetime warranty included.

Common failure symptoms:

• Gearbox in emergency mode
• Harsh or erratic shifting
• No reverse gear
• Dropping out of gear
• Sticking in gear
• Transmission warning light
• Engine warning light
• ‘Gearbox malfunction’ message on dashboard
• ‘Reverse not available’ message on dashboard

Common fault codes:

• P174E – Valve 3 In Partial Transmission 2: Electrical Error
• P174A – Valve 3 In Partial Transmission 1: Electrical Error
• P2711 – Unexpected Mechanical Gear Disengagement

Test and rebuild:

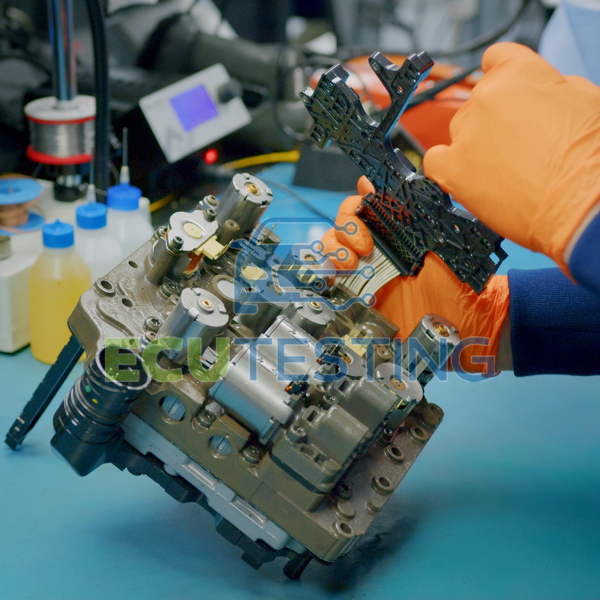

We analyse all DQ250 mechatronic units on state-of-the-art custom-built testing rigs. This allows us to accurately locate all underperforming areas of the control unit and rectify them during the remanufacturing process.

Programming:
When we remanufacture control modules, all programming information is retained, meaning you won’t need to recode it back to the vehicle afterwards.

Quality:
We handle all DSG mechatronic units with the utmost care. Our commitment to providing an excellent service is evidenced by our company-wide defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the mechatronic unit inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your control unit with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the unit inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control unit and call to inform you of the outcome of testing. If your mechatronic is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this DQ250 mechatronic repair page then please contact us.
