ATE MK61 ABS Unit Repair

The MK61 ABS unit is one of the most widely used automotive control modules in the world, but it’s not without its faults. If you’ve investigated a vehicle’s ABS problems and concluded your ATE MK61 ABS unit needs to be repaired, you’re in the right place and we can help.

Shop Now - ATE MK61 ABS Unit Repair

When this unit fails it causes a plethora of failure symptoms, from an ABS warning light, to pump motor faults, all the way through to a complete loss of ABS assistance. These are frequent problems for a number of popular vehicles like the MK6 Golf (2008-12), Audi A3 (2008-12) and Mercedes C-Class (2007-14).

Don’t be tempted to completely replace the ABS unit when these symptoms materialise either, in many cases the ATE MK61 can be repaired to restore full functionality. Fill out our test form and we’ll tell you conclusively if your unit can be remanufactured.

What Is The MK61?
Automotive manufacturing giants ATE released the MK61 control unit in 2004 as an enhancement of their earlier release, the MK60. The MK61 unit brought with it increased processing power and improved integration with modern vehicle requirements and functionalities. Not only did it comply with expanding ESC mandates at the time, but the MK61 also made forward strides in software capability and thermal management.

Despite significant improvements in both design and functionality, the MK61 has proven susceptible to internal failures. When considering ATE MK61 repair options, it’s vital to first understand what is, and what isn’t a sign of ABS unit failure. Thankfully, we’ve put together a comprehensive guide to assist you when tackling an ATE MK61 repair.

ATE MK61 Repair – Pump Motor Fault
When a defect manifests itself with the MK61 unit’s pump, you’ll have an ABS light on and braking assistance will be lost until the unit has been repaired. When investigating these symptoms further, you’ll uncover specific pump-motor-related fault codes. For example, this defect causes 5DF0 and/or 5DF1 to store in BMWs, C0110 in Vauxhall vehicles and 01276 for VAG models.

It’s important to understand that a MK61 fault doesn’t just trigger any pump-motor-related code, only a select few are caused by a malfunction of this ABS unit. The codes below are clear indicators that your ABS issues are coming from a defective MK61 pump and that you should have the ATE unit repaired:

• 5DF0/5DF1 – DSC: Hydraulic Unit Pump Motor (BMW)
• 01276 – ABS Hydraulic Pump Electrical Malfunction (VAG)
• C2116 – Pump Motor Voltage Low (Various)
• C0020 – ABS Pump Motor Control Faulty Voltage (Mazda, Renault)
• C0110 – ABS Pump Motor Failure (Vauxhall)
• C1061 – Pump Motor Fault (Suzuki)

Before sending your MK61 off for professional testing, it's always worth verifying that the ABS pump motor is receiving a 12V power supply and a solid ground connection in order to avoid unnecessary repair costs. If either is missing, rule out a wiring fault and verify the integrity of the high-amp pump motor fuse – this tends to be F25 for VAG vehicles.

If possible, you should also perform a pump motor output test with a compatible diagnostic tool, if this can’t be carried out it’s a strong indicator the ATE MK61 needs to be repaired.

Our video below is full of practical tips and tricks for diagnosing ABS pump motor faults:

ATE MK61 Repair – Control Module Fault

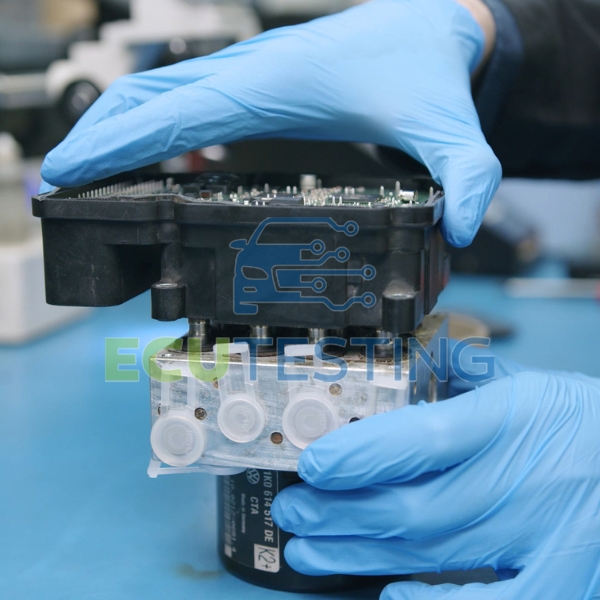

The MK61’s internal problems are unfortunately not isolated to just the upper section of the unit, the electronic control module mounted to its base also frequently fails.

As you can imagine these control modules were produced in great mass, and inevitably, cheaper, less reliable internal components were included. As a result, the electronic modules on ATE’s MK61 unit fail earlier than you’d expect, inevitably needing to be repaired.

Again, this issue will trigger the ABS warning light and will restrict assisted braking in an emergency. In VAG vehicles this will often be accompanied by a 16352 fault code or the infamous 01130 ABS operation implausible signal code. In other cases, a defective MK61 module will be completely unresponsive to diagnostic communication.

Of course before considering a repair of the ATE MK61’s control module, you should verify power and ground supply to the unit first. It’s also worth checking each ABS-related fuse, particularly the low-amp ABS module fuse – this is typically F2 in the engine bay fuse box for the MK6 Golf.

Common codes caused by a MK61 control module fault:

• 16352 – Control Module Defective (VAG)
• 01130 – ABS Operation Implausible Signal (VAG)
• 5001 – Control Unit N30/4 Internal Fault (Mercedes)

How To Resolve MK61 Failure
Now, once you’ve isolated your failure symptoms to a defective MK61 ABS unit, many experts will recommend that you completely replace it. This absolutely is not the most cost-effective or time-saving solution. Instead we suggest having your control unit comprehensively remanufactured.

Remember, replacement units are made up of the very same internal profile as your original. This means the expensive replacement you’ve ordered and endured an extensive lead time for, comes loaded with the same design flaw and weak internals that caused the problem in the first place.

Our Solution
We’ve got a better option, have the unit rebuilt by the experts. Our highly-trained technicians are armed with state-of-the-art equipment and the latest remanufacturing techniques to overcome the root cause of failure.

We go a step further than regular ATE MK61 ABS repair services. We won’t just switch out a few faulty components, we’ll completely rework the internal profile of your control unit to ensure functionality is restored with longevity in mind. Better still, we even use higher-than-OEM-standard components in our MK61 rebuilds too.

We’ll do all this in just 2-3 working days and cover you with an unlimited-mile lifetime warranty. You won’t need to reprogramme your rebuilt unit either as this information is preserved throughout our process.

Don’t just have your ATE MK61 ABS unit repaired, have it remanufactured by the industry experts. Fill out our test form to get started.

Common failure symptoms:

• ABS/ESP warning light
• Traction warning light
• Loss of ABS assisted braking
• Pump motor faults
• No comms with ABS module
• Brake pressure sensor faults

How to diagnose:

Test and rebuild:

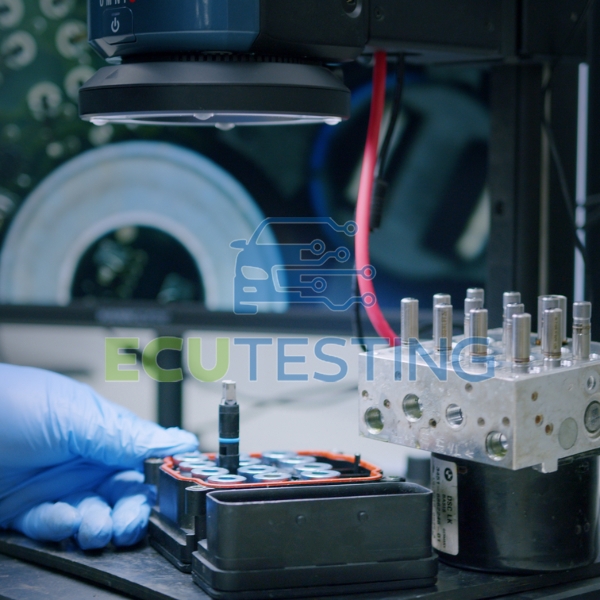

We test all MK61 units on our Hardware-In-the-Loop testing rigs to analyse your control unit under realistic driving conditions. We’ll then remanufacture the unit with top-grade components to upgrade long-term durability.

Programming:
You don’t need to worry about reprogramming your rebuilt unit at additional time and expense – this information is preserved throughout our process.

Quality:
We pride ourselves on excellent attention to detail, this is exemplified by our industry-leading defect rate of 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the ATE MK61 inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your ABS unit with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the ABS inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control module and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your ABS unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this ATE MK61 ABS unit then please contact us.
