VW Passat ABS Pump Module

Volkswagen Passat ABS fault

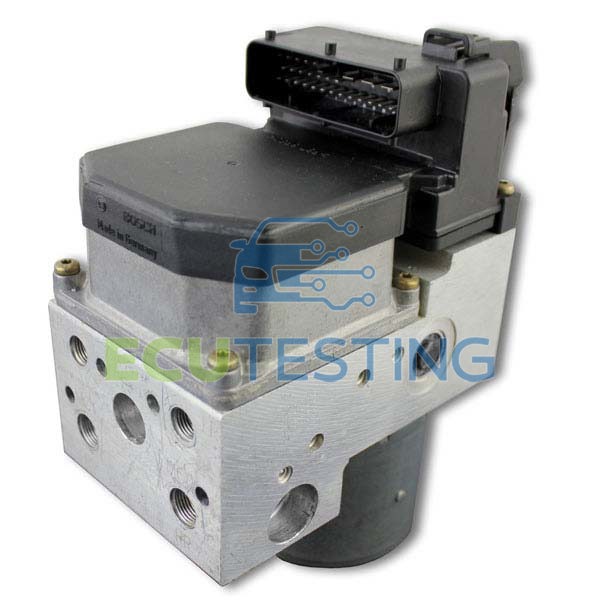

VW Passat ABS pump & ECU Modulator/Module



ABS system: Bosch 5.3

ABS pump location: Under bonnet on the near side next to the washer bottle

The Passat ABS pump & module system has been a very common failure for a long time now, the problem usually starts with the ABS light coming on intermittently but then the problem becomes more constant.

If you try to diagnose the ABS fault using scan tools you will often find that the ABS module refuses to achieve communications. Because of this, other electronic modules in the vehicle may store fault codes for no communications to ABS.

Whilst the internal fault is present only standard braking will be available – you will have no emergency braking system activated.



We can rebuild these VW Passat ABS pump and modules within 2-3 working days and provide an unlimited mile lifetime warranty.



ABS pump module removal:

We normally only ever need the electronic part of the ABS pump, this is attached to the side of the pump with six torx screws and can be removed easily. The best way to access the module is to first remove the passenger side front wheel and the inner wheel arch plastic liner, then the washer bottle can be unbolted and moved out of the way giving access to the six torx screws. Remember you can still drive the car with the module removed - you will have conventional braking but with no ABS function and the light will remain on until the remanufactured module is refitted.



Shop Now



Common Failure symptoms:

  • ABS warning light illuminated
  • No communication to the ABS module



Affected Vehicles:

  • Volkswagen Passat (B3, B4 & facelift) 1994 - 2005



(Can’t see your part number? Check our full Passat ABS range)



Test and rebuild:

Using our HIL (Hardware-In-the-Loop) rigs we test these ABS units under real-world load and driving conditions before and after rebuild to ensure that it will not fail again. Only the highest rated components are used during rebuild.



Programming:

You will not need to program this ABS once you receive it back from us.



Quality:

With a work defect rate lower than 0.49% across all our products, a strong work ethic and quality control second to none – we can confidently and proudly provide a lifetime warranty and exceptional after sales support.



Warranty:

Lifetime unlimited mileage*



How do I get my unit rebuilt?

To pay for the rebuild select your part number and then click: Get yours rebuilt

Print the payment/booking confirmation email.

Package the Volkswagen Passat ABS pump and module inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your Passat ABS unit with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)



What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the Volkswagen Passat ABS pump and module inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your ABS and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your Passat ABS unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Volkswagen Passat ABS pump and module, then please contact us.
