VW Tiguan And Transporter DQ500 Mechatronic Repair

Are you experiencing harsh or irregular gear changes, a loss of individual gears, or even a complete loss of drive in your VW? These symptoms are strong indicators of a DQ500 mechatronic fault that’s going to require a professional repair.

Shop Now - DQ500 VW Mechatronic Repair

The DQ500 mechatronic is a common failure point in VW models such as the 2.0 TSI/TDI Tiguan and Transporter fitted with the DQ500 DSG gearbox. This unit isn’t confined to Volkswagen, however, as the same DSG mechatronic is also fitted to Audi models, including the Q3 and A3.

What is the DQ500 DSG?

Released in late 2010, the DQ500 is a seven-speed dual-clutch transmission (DCT) designed by Volkswagen for high-torque vehicles, serving as a step-up from the DQ381 unit in its ability to handle up to 600 Nm of engine torque. However, like any DSG system, it uses a mechatronic control module to manage shift and clutch operations, which means a repair of the DQ500 mechatronic becomes a necessity when problems arise.

DQ500 mechatronic unit

The DQ500 mechatronic unit is the hydro-electric control assembly that regulates the wet-clutches and dictates gear selection inside the VW’s transmission. Similarly to the DQ381, which is prone to internal malfunction, the mechatronic unit within the DQ500 can develop internal faults over time that’ll require a professional repair to resolve.

Common DQ500 mechatronic problems

The DQ500’s mechatronic unit is prone to problems with internal component degradation, often resulting in rough or delayed gear shifts, fault codes P0607 and P175D, and a loss of odd (1, 3, 5) or even (2, 4, 6) gears in your 2.0 TSI/TDI VW Tiguan or Transporter fitted with the DQ500 DSG gearbox.

These codes and symptoms indicate a malfunction with the hydraulic and electronic functions of the DQ500 mechatronic unit, confirming an internal failure that cannot be resolved until the unit is professionally repaired.

Our mechatronic solution

Instead of replacing your unit with a new or used mechatronic, which is likely to contain the same internal weaknesses that caused the original fault, our bespoke service can restore functionality more effectively.

Our process uses top-of-the-range testing rigs in order to efficiently diagnose and resolve your DQ500 mechatronic problems in just 2-3 working days. If this wasn’t enough, we also retain coding information throughout, making the process seamless.

Fill out this short test form to start your rebuild today.

Common failure symptoms:

• Loss of odd or even gears
• Intermittent loss of gears
• Complete loss of gears
• Complete loss of drive
• Limp mode

Common fault codes:

• P176A - Clutch 1 pressure control solenoid - electrical fault
• P176C - Clutch 2 pressure control solenoid - electrical fault
• P175D - Pressure control valve for clutch 1 (N471) - mechanical malfunction
• P0607 - Control module performance

Test and rebuild:

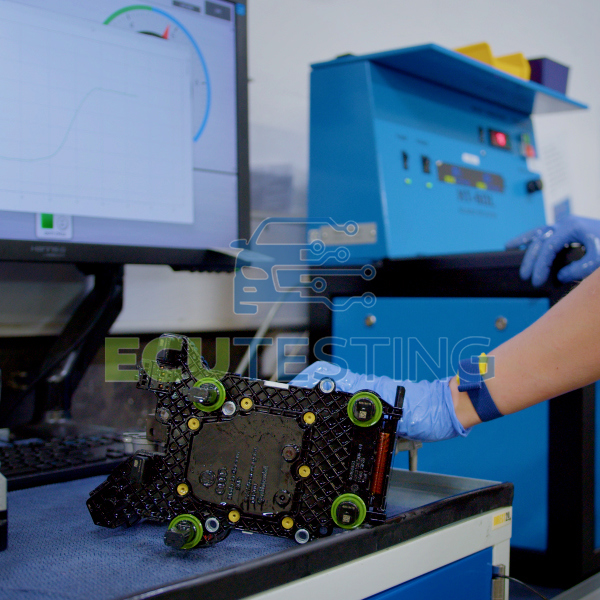

We test all DQ500 mechatronic units on state-of-the-art testing rigs. This allows us to analyse failure symptoms without the need of a vehicle, to confirm whether a defect is present. We’ll then confirm whether you would like to go ahead with the rebuild, and if you do, we’ll waive the testing fee.

Programming:

Once your DQ500 mechatronic unit has been remanufactured, you won’t even need to recode it either. All coding information previously stored in your module when you sent it to us is retained throughout our process, so you just plug and play.

Quality:

We pride ourselves on quality, which is why we only use top-grade components and include a lifetime warranty as standard. Thanks to our commitment to continuous improvement and state-of-the-art remanufacturing equipment, our defect rate is currently as low as 0.49%.

Warranty:

*Lifetime unlimited mileage.

How do I get my unit rebuilt?

To pay for the rebuild, click the Shop Now link above, select your part number, and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the mechatronic inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box.)

Send us your package by tracked courier (the shipping instructions are in the confirmation email.)

Once received, we will test, rebuild, and return your module with an unlimited mileage lifetime warranty. (If your unit turns out not to be faulty, then we will refund your payment, less a small testing fee and return shipping.)

What if I don’t want to pay up front?

This is not a problem. If you prefer this option, then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the mechatronic unit inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are in the confirmation email).

Once received, we will test DQ500 and call you to advise on the outcome of testing. If your control module is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your ECU and return it to you with an unlimited mileage warranty.

If you require further information regarding this mechatronic, please contact us.
