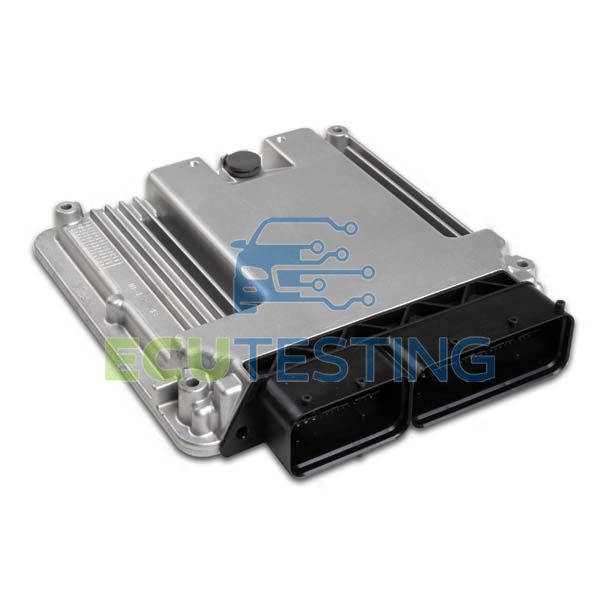

Bosch MED9.1 – Commonly Failing VAG Engine ECU

The Bosch MED9.1 engine ECU is widely used by performance-spec VAG vehicles, and it’s frequently known to malfunction. Failure leads to starting issues and cutting out, which has become a huge problem for Mk5 Golf GTI owners. Thankfully, we remanufacture these ECUs to restore long-lasting functionality in just 2-3 working days.

Shop Now – Bosch MED9.1 ECU Rebuild

These control modules are fitted to a huge range of VAG models, particularly those with FSI and TFSI engines capable of delivering in excess of 200 bhp. When failure strikes, engine performance suffers and starting issues are quick to materialise.

In many cases of MED9.1 ECU failure, misfires occur alongside a rough idle. This typically leaves behind a random misfire DTC (P0300) as well as anything from P0301 (cylinder 1 misfire) to P0306 (cylinder 6 misfire). As the control module completely deteriorates, checksum error codes like P0601 are often stored, particularly in affected Mk5 VW Golfs.

If you believe you’ve suffered a MED9.1 ECU fault, send it to us via this test form and we’ll remanufacture it with a lifetime warranty included.

Which VAG models carry a Bosch MED9.1 ECU?
As mentioned, these ECUs are a frequent failure point for the Mk5 Golf GTI with a 2.0L FSI engine. This includes both Edition 30 and GTI Pirelli spec models. The MED9.1 ECU is also fitted to the Mk6 Golf R, again with a 2.0L petrol engine.

Volkswagen also used this ECU in performance-spec Passat B6 vehicles. Again, this includes 2.0L petrol vehicles (TFSI) but also 3.6L models capable of 295 bhp (FSI and R36).

These engine ECUs were widely used across Audi’s performance range of vehicles in the mid to late 2000s. Again, you’ll find them in 2.0L TFSI models including the A3, A4, S3, S6 and TT. The MED9.1 was also responsible for managing Audi’s 4.2L FSI engine, capable of over 400 bhp – this includes the third-generation A4, second-generation RS4 and the release R8 Coupe.

The MED9.1 is less widely used across the Skoda and Seat ranges, you’ll only find these ECUs in these manufacturers’ flagship models from the late 2000s. This includes the second-generation Octavia vRS with a 2.0L TFSI RS engine (BWA code only) and the 2.0L TSI FR third-generation Seat Leon.

You can find a full list of affected vehicles below. If you can’t find your model listed, but you believe it’s experienced a MED9.1 fault, you can still send your ECU to us for testing via this form.

Bosch MED9.1 ECU: repair or replace?
Having diagnosed their engine’s poor performance as a result of a defective MED9.1 ECU, many owners choose to replace it with a new unit. However, you need to understand that these control modules fail due to critical internal malfunctions. What many don’t consider is that replacement units often carry the very same defect that’ll cause running issues to return in the near future.

So, to be sure that starting issues or codes like P0300 and P0601 don’t return to your Mk5 VW Golf, it’s recommended to have your MED9.1 ECU comprehensively remanufactured.

Our solution

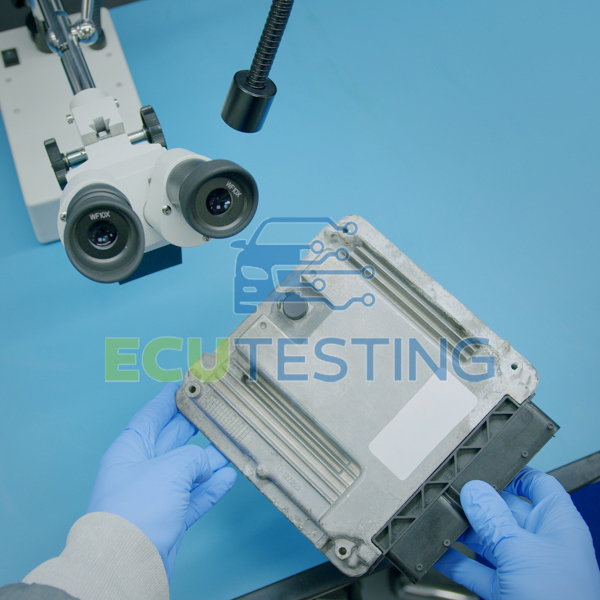

Thankfully, we provide this very service for all models fitted with these ECUs. Simply send your MED9.1 to us and we’ll analyse it on our state-of-the-art testing rigs. Our rigs simulate realistic operating conditions, allowing us to locate the root cause of failure with great accuracy.

Our team of expert technicians will then commence the remanufacturing process, during which we use-higher-than-OEM-standard components. Your engine ECU will be retested to ensure it’s ready for action, before we return it to you via a next-day courier service.

We do all of this in just 2-3 working days, and you won’t even need to leave your workshop or recode the ECU when it returns (all programming information is retained). Better still, you’ll be covered for good thanks to the unlimited-mileage lifetime warranty we provide with all of our rebuilds.

Have your Bosch MED9.1 ECU remanufactured by the experts – simply fill out this test form to get started.

Common failure symptoms:

• No start / difficulty starting
• Cutting out
• Misfires (P0300-P0306)
• Rough idle
• No communication via diagnostics
• No communication between engine ECU and other modules

Common fault codes:

• P0300 - Random Misfire Detected
• P0601 - Internal Control Module: Memory Checksum Error
• P1603 - Control Module Faulty

Test and rebuild:

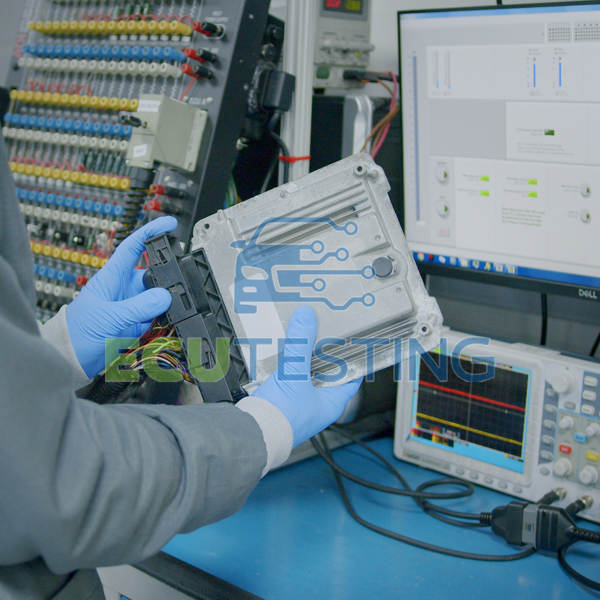

We test all engine ECUs on state-of-the-art custom-built testing rigs before and after the rebuild. Our rigs are able to simulate realistic operating conditions and inputs to expose hard-to-find faults.

Programming:
You won’t need to recode the MED9.1 engine ECU back to your vehicle, as our process retains all coding information.

Quality:
We are proud to provide a high-quality service to the industry. Thanks to strict quality assurance procedures, we’ve achieved a defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the MED9.1 ECU inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your control module with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the ECU inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your MED9.1 and call to inform you of the outcome of testing. If your unit is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your engine control module and return it to you with an unlimited mileage warranty.

If you require further information regarding this Bosch MED9.1 ECU then please contact us.
