Magneti Marelli 4HV ECU Fault

Is your VW Polo not starting and the EML is on the dashboard? A common cause of these symptoms in VW Polo Mk4 and Mk5 models is a fault within the Magneti Marelli 4HV ECU. These units are known to fail internally, leading to starting issues or forcing the vehicle into limp mode. The good news is that we offer a reliable solution to restore your ECU to full functionality and get you back on the road.

SHOP NOW – Magneti Marelli 4HV Rebuild

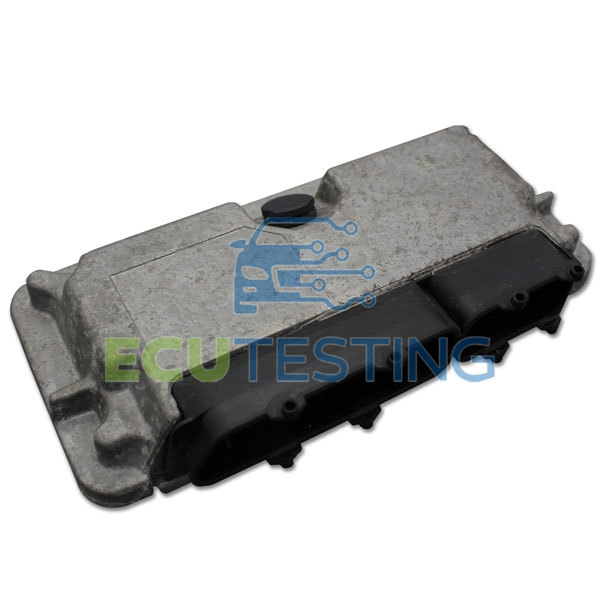

The IAW 4HV is a Magneti Marelli (now Marelli) engine ECU designed for specific VAG vehicles with 1.4L petrol engines. It is fitted across VW Polos such as the Mk4 (2006-2009) and the Mk5 (2009-2014), as well as VW Golf Mk6 (2008-2012) and the SEAT Ibiza (2006-2013). Internal failures within the ECU prevent it from controlling the injectors and ignition timing correctly, leading to starting issues. Our team specialises in remanufacturing ECUs to eliminate internal faults and restore correct operation. Fill out this test form to solve your ECU issues.

Why The Magneti Marelli 4HV ECU Fails
Marelli mass-produced these ECUs across different generations to support a wide range of vehicles, VW Polo models included. To achieve this, the control units were built with internal components prone to earlier degradation under real-world condition. Over time, this known design weakness, combined with constant heat cycles, engine vibration, and electrical stress, accelerates internal wear and leads to ECU failure.

Common Marelli IAW 4HV Faults
One of the most common symptoms of a faulty Magneti Marelli 4HV ECU is the vehicle not starting, especially in VW Polo Mk4/Mk5 models. When operating under normal conditions, the ECU regulate injector timing and delivery based on engine demand. When a fault develops, the ECU no longer controls the injectors consistently, leading to rough running, or the vehicle entering limp mode, or in more severe cases, non-starting.

As this internal fault progresses, it can affect the ECU's internal control of its power supply circuits, which can prevents the unit from powering up correctly. This will lead to fault codes such as 17069/P0685 (ECM/PCM power supply relay control circuit) being stored. You may also notice the engine management light (EML) illuminated on the dashboard, indicating a fault has been detected.

Is A Magneti Marelli 4HV Replacement The Best Solution?
Many vehicle owners assume that replacing the IAW 4HV ECU is the quickest way to solve these issues, but this lead to repeat faults. As mentioned, the root cause of failure in these ECUs lies in the internal components used during manufacturing. As a result, replacement units are built to the same specification and remain vulnerable to recurring degradation over time. On top of that, brand new replacements are expensive and do not address the core issue.

Our Magneti Marelli 4HV Solution
Our ECU rebuild service fully remanufactures the control unit to restore full functionality in 2-3 working days. We remanufacture these units using higher-than-OEM-standard components to assure you long-term reliability. If your VW Polo won’t start and the EML is illuminated on the dashboard, fill out this test form to begin your ECU rebuild process today.

Common failure symptoms:

• Non-start
• EML on the dashboard
• Limp mode

Common fault codes:

• 17069/P0685 - ECM/PCM power relay control circuit open



Test and rebuild:

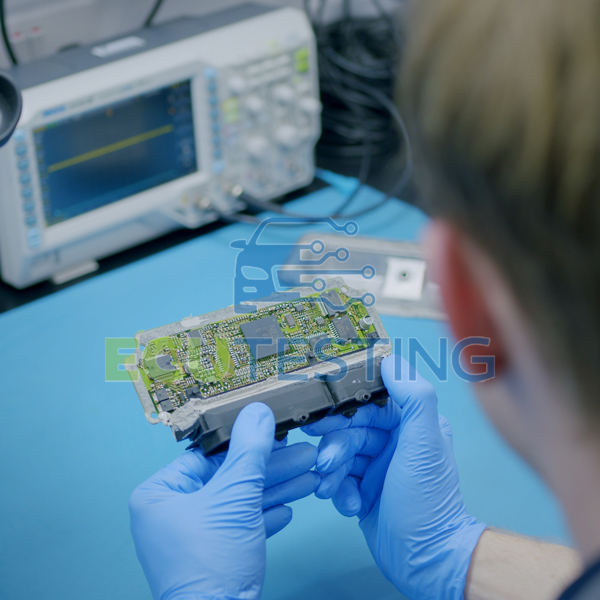

Each ECU is comprehensively tested on our bespoke HIL (Hardware-In-the-Loop) test rigs. By running the ECU under real-world load and driving conditions, we can ensure that, once rebuilt, the engine control unit will outperform OEM specifications.

Programming:
All original coding is retained during the rebuild process. The unit is plug-and-play with no additional programming required on installation.

Quality:
Our technicians support main dealers and automotive specialists worldwide. Every unit is rebuilt using higher-than-OEM-standard parts and strict testing procedures, which is reflected in our defect rate of 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?
To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the 4HV unit inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your ECU with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the Magneti Marelli 4HV inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your unit and call to inform you of the outcome of testing. If your IAW 4HV is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your ECU and return it to you with an unlimited mileage warranty.

If you require further information regarding this Magneti Marelli 4HV, then please contact us.
