Vauxhall Mokka Brakes Sticking – Mando ABS Problem

If your 2012–2019 Vauxhall Mokka has the ABS warning light illuminated on the instrument cluster or the vehicle’s brakes are sticking, this is a direct indication that you have a faulty Mando ABS unit.

Shop Now - Vauxhall Mokka Brake Sticking Solution

Mounted near the brake master cylinder, the Vauxhall Mokka’s Mando ABS unit modulates hydraulic pressure to prevent wheel lock-up during braking. When an internal fault occurs, however, the unit is no longer able to correctly control or release brake pressure, causing your Vauxhall Mokka’s brakes to stick. In many cases, this fault also results in a loss of communication with the Mando ABS module, which is identified during a diagnostic scan. When this occurs, ABS and ESC functions are disabled, directly impacting braking control and stability.

What Is The Mando ABS Unit?

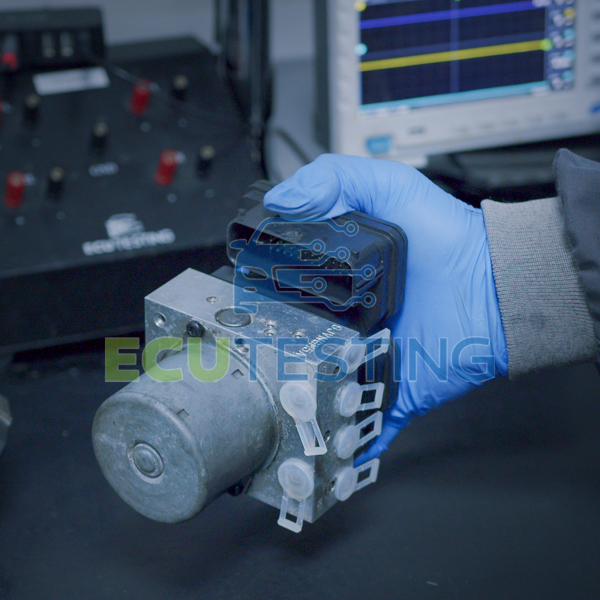

Created by South Korean manufacturer Mando and fitted to the first-generation Vauxhall Mokka (2012–2019), this ABS unit integrates the hydraulic block, electronic control module and pump motor into a single assembly. The hydraulic block uses a network of solenoid-controlled inlet and outlet valves, a low-pressure accumulator and a recovery pump to manage brake fluid pressure for each wheel.

The control module monitors wheel-speed signals from sensors mounted on each wheel hub, and inputs from the brake-pressure sensor. Your Mando ABS module then utilises this information to prevent wheel lock-up by rapidly cycling the solenoid valves using pulse-width modulation to adjust hydraulic braking pressure.

Vauxhall Mokka ABS Problem – Sticking Brakes

Fitted to a range of vehicles, including the Kia Sportage (2010-2015) and Hyundai Tucson (2015-2018), the Mando ABS unit is prone to developing internal faults that cause hydraulic pressure to become trapped within a single wheel circuit. When pressure is unable to be released from the calliper, it leads to your Vauxhall Mokka’s brakes sticking. In some cases, degradation of the ABS module will also prevent the Mando ABS from communicating across the CAN bus, triggering the ABS warning light on your Vauxhall Mokka’s instrument cluster.

Our Comprehensive Solution

To resolve the problem of your brakes sticking or your ABS light illuminating, the best solution is to have your Vauxhall Mokka’s Mando ABS module comprehensively rebuilt, rather than replaced, by experts. Standard replacement modules are manufactured to the original design specification, which means they retain the same internal control components and failure points as the original unit, leaving you vulnerable to recurring ABS module malfunctions.

We use higher-than-OEM specification parts to ensure that your ABS unit is restored to full functionality. This process takes just 2-3 working days and comes with an unlimited-mile lifetime warranty. This means you can relax knowing that if your Vauxhall Mokka’s ABS light is illuminated on the instrument cluster or your vehicle’s brakes are sticking, we'll confirm that the ABS module is to blame for these problems, and comprehensively rebuild it. Fill out this test form to start the process today.

Common Failure Symptoms:

• ABS/ESP Warning Light Illuminated
• Brake Binding
• No Communication With The ABS Module
• Sinking Brake Pedal

Common Fault Codes:

• C0161 - Antilock Braking System Brake Switch Circuit Fault

Test and rebuild:

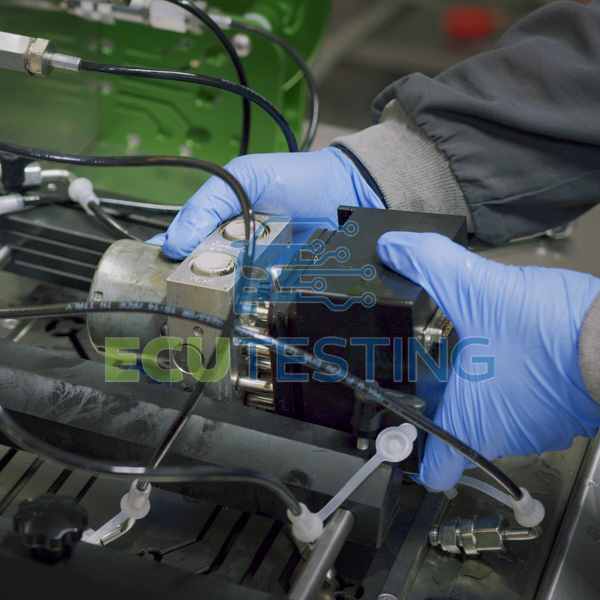

We use state-of-the-art testing rigs for all units. Once the fault is confirmed during the process, we’ll undertake a complete rebuild, using higher-than-standard components to ensure the longevity of your Mando ABS.

Programming:

You don’t have to worry about reprogramming your ABS module back to the vehicle, as all coding information is retained during the rebuild process.

Quality:

With our defect rate of just 0.49% you can rest assured that quality is at the heart of what we do, from start to finish.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the ABS module inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your unit with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping).

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the ABS inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control module and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Mando ABS rebuild, please contact us.
