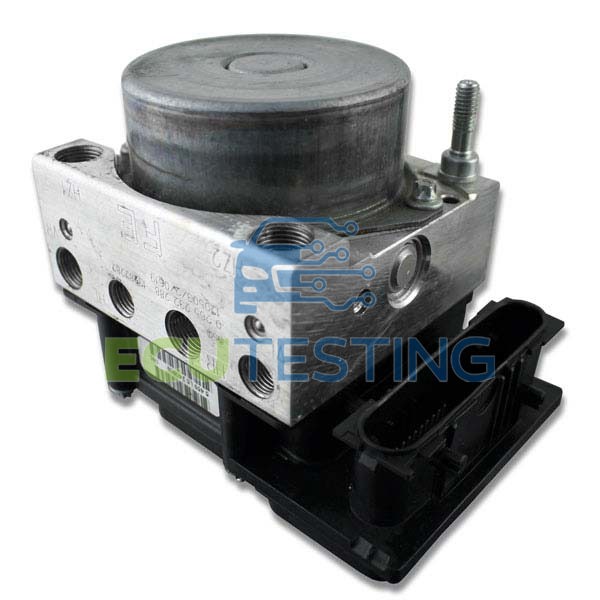

Vauxhall Corsa (D) ABS pump fault

Corsa D ABS malfunction

This Corsa (D) ABS pump is a very common failure for all Vauxhall Corsa vehicles built between 2006 and 2014, the common fault is complete lack of braking effort to the front left brake caliper, this results in the vehicle pulling to the right side of the road during braking. This can be dangerous during emergency braking conditions as the car will swerve quite hard to the right-hand side during very heavy braking.



If you have tried to diagnose the problem, then you will have noticed that no brake fluid is reaching the left side front brake caliper so it is impossible to bleed the left side front brake. This problem is caused by an internal fault within the ABS pump so no amount of flushing or bleeding will solve the issue.



Replacing the ABS pump with a new one from the manufacturer is a very expensive option and you will only get a 1-year warranty on the new part.



We are now able to fully rebuild your own Corsa ABS pump for a fraction of the cost of a new unit from the manufacturer.

We can also supply fully remanufactured replacement units directly from stock (when available).

Both options above come with our unlimited mileage lifetime warranty* as standard.

Shop Now



Common Failure symptoms:

  • Pulling/swerving hard to the right while braking
  • No brake fluid reaching left side front brake caliper



Affected Vehicles:

  • Vauxhall Corsa D 2006 - 2014



Common failing part numbers:

  • 0 265 800 422 / 0 265 231 537 / 0 265 232 238
  • 93192753 / 13236012 / 13277812 / AQ / FB

(This is a small list of common failing numbers, if you do not see your part number here then please see the full list here)



How to diagnose:





Test and rebuild:

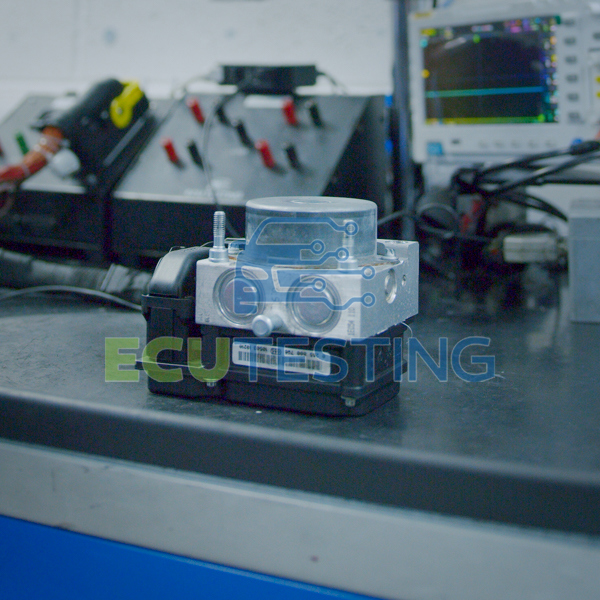

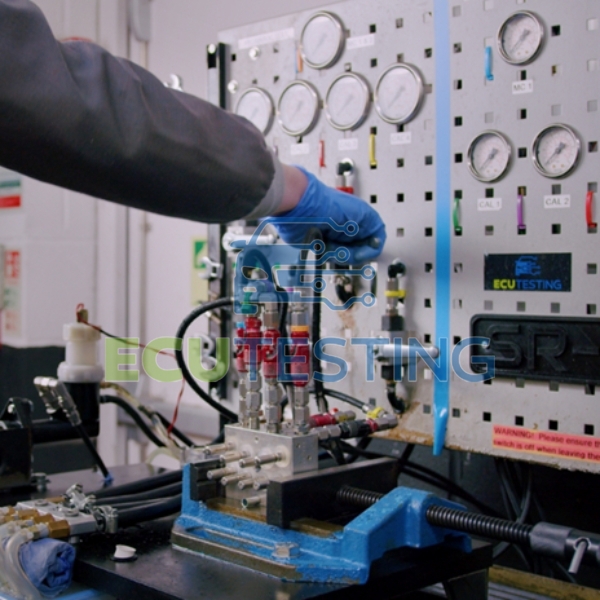

We first test your ABS pump using our purpose built HIL (Hardware In-the-Loop) test-rig, this allows us to run the ABS unit as if it were on the vehicle by fully pressure testing your unit under all driving conditions. If your unit fails this test then we know it is faulty and can move on the rebuild stage – during this stage we fully strip your unit and replace all failed components, we also ensure that the unit will not fail again by eliminating the original manufacturing design flaw from within the ABS unit. We then retest your unit to confirm the rebuild has cured all issues before carefully packaging your unit and returning it to you ready to be fitted back to the vehicle.



Programming:

There will be no need for programming, just fit and bleed and away you go.



Quality:

We have been rebuilding and supplying these Corsa D ABS pumps to specialists, owners and main dealers for many years. Our commitment to our lifetime warranty standards ensures that our work defect rate, across everything we do, is lower than 0.49%



Warranty:

Lifetime unlimited mileage*



Price and product info: Corsa (D) ABS pump product catalogue page.



How do I get my unit rebuilt?

Pay for the rebuild here: Get yours rebuilt

Print the payment/booking confirmation email.

Package the Corsa D ABS pump inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your ABS pump with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)



What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the Corsa D ABS pump inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your ABS pump and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your Corsa D ABS pump and return it to you with an unlimited mileage warranty.

If you require further information regarding this Vauxhall Corsa D ABS pump, then please contact us.
