Renault Megane Scenic Instrument Cluster Dash Dashboard

Renault Scenic dash fault

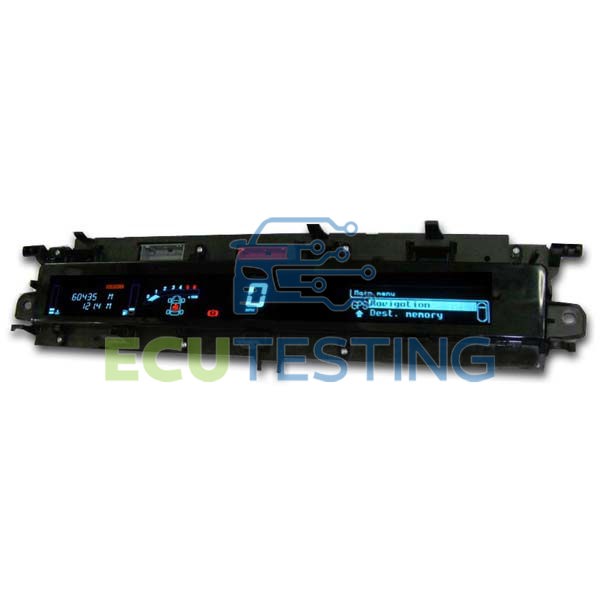

Renault Megane Scenic Dash/Dashboard Instrument Cluster


This dashboard instrument cluster is a very common part to fail. Spanning two generations of the Renault Scenic (Megane Scenic/Scenic I and Scenic II) this dashboard cluster suffers from multiple issues when it begins to fault.

Often the failure begins with the backlight on the cluster flickering and then intermittently not working at all. Internal faults with the cluster may prevent the dash cluster from powering up completely at this stage also.

When the instrument cluster does power up and the backlight works you may notice that the clock and the MPG/range information resets itself randomly. This can go hand in hand with miles being added randomly, up to 1000 miles at a time can be added without the vehicle even having to move.


With all these faults being intermittent in nature you will notice that eventually the defects become permanent and the dashboard cluster becomes unusable.

A replacement is very expensive, will require programming to the vehicle at a further expense and will only come with a 6-month warranty.

We offer a better solution: we can rebuild your original instrument cluster, keeping all coding information, at a fraction of the cost of buying new.


Shop Now


Common Failure symptoms:

  • Backlight flickering
  • Backlight not working at all
  • Dashboard cluster not powering up
  • Clock and MPG/range information resets
  • Miles added randomly to odometer


Affected Vehicles:

  • Renault Megane Scenic / Scenic I (1st generation) 1996 - 2003
  • Renault Scenic II (2nd generation) 2003 - 2009


Common failing part numbers:

  • P8200 451 505 A
  • P8200 107 954 A
  • P8200 365 607 E
  • P8200 332 353 C
  • P8200 365 608 D
  • P8200 365 607 B
  • P8200 365 608 E

(This is just a small selection of part numbers, if you do not see yours don’t worry, we cover all part numbers for this dashboard)


Test and rebuild:

Using our bespoke test rigs all functions of the Scenic cluster are tested as though it was on a vehicle, if the cluster is identified as faulty, we move onto the rebuild stage. We will strip and rebuild the unit using only the highest grade components. Once the rebuild is complete, we retest the dashboard cluster to ensure it functions in accordance with the manufacturers original specification.



No need for programming once you receive your dash cluster, just plug and play.



We take a great deal of pride in our work and will always handle your instrument cluster as if it where our own, we understand how important it is for your instrument cluster to always look as good as new when it is fitted back to your vehicle. We have rebuilt these clusters for both main dealers and independent specialist so you can always be assured of our very high standard of work.



Lifetime unlimited mileage*




How do I get my unit rebuilt?

Pay for the rebuild here: Get yours rebuilt

Print the payment/booking confirmation email.

Package the Renault Scenic dashboard instrument cluster inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your Scenic cluster with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)


What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the Renault Scenic dashboard instrument cluster inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your instrument panel and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your Scenic dash cluster and return it to you with an unlimited mileage warranty.

If you require further information regarding this Renault Scenic dashboard instrument cluster, then please contact us.

Renault Products/Services





















Comments on "Renault Megane Scenic Instrument Cluster Dash Dashboard"
Imre kocsis says: 14/07/2024 11:21:09
Electronic fault?
Peter Szladecsek says: 07/02/2020 20:18:32
My sister gave me her Renault megane scenic 2 2005,couple of weeks later it happened. Got one from a scrapyard and again, couple of years later it just went dark and that's it. Mind you that my brother in law has changed it twice so the next one is the fifth in 15 years
ECU Admin says: 10/02/2020 11:30:18
Hi Peter, that’s a real bad run of luck. Next time you have issues send us your cluster and we will rebuild it so that it doesn’t fail again and will provide you with an unlimited mile lifetime warranty.
Ronald Shakespeare says: 25/07/2019 16:54:12
Thank you for repairing my cluster for my Megane Scenic mk2. I have now fitted it and at last I have a perfectly working cluster. I am amazed at how fast your turn around was, and that I didnt need to pay what I was quoted. So I could use my car I got a second hand cluster which has a fuel gauge not working apart from that it is perfect. I am thinking about sending off to you to repair as well. I will definitely tell all my friends and family about your company and I will use you again.
ECU Admin says: 26/07/2019 15:29:06
Hi Ronald, What great feedback, thank you. Very glad you are back on the road, you are more than welcome to send your other cluster to us. Here is a quick link to get you started Many thanks Lee
