Siemens SID206 – Commonly Failing Ford Engine ECU

Have you got a 2006-2012 Ford TDCi vehicle that’s struggling to start and has P0606 and P0A09 stored? It’s very likely you’re experiencing a widespread issue with the Siemens SID206 engine control module. Don’t worry, we remanufacture SID206 ECUs in just 2-3 working days with a lifetime warranty included.

Shop Now – Ford SID206 Rebuild

While fitted to a huge range of Ford models, the SID206 ECU is a particular problem for owners of first-generation 1.8L Transit Connects (2006-2012) and 2.0L Kugas (2008-2010). When failure strikes, starting issues quickly develop until the engine refuses to start at all. In many cases, fault codes P0606 and P0A09 are stored, which of course trigger your Ford’s engine warning light too.

Thankfully, we’re the experts at resolving these issues with our bespoke SID206 remanufacturing service. Send us your Ford ECU via this test form and restore functionality in just 2-3 working days.

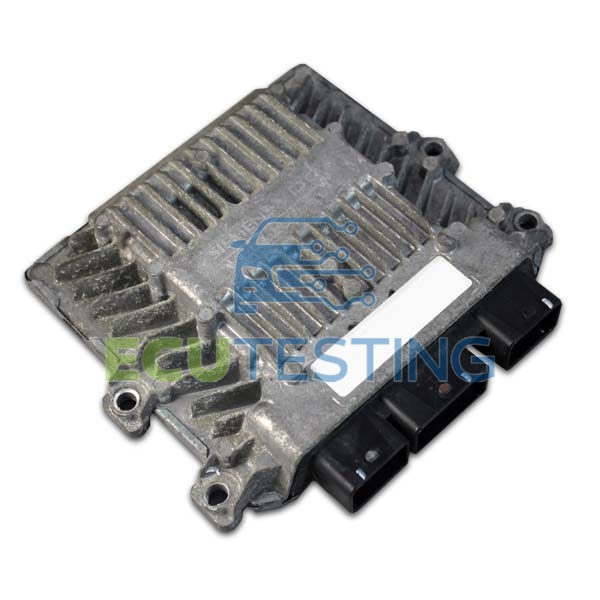

What is the Siemens SID206?
The Siemens SID206 is an engine control module used by various Ford vehicles. It’s fitted to diesel (DuraTorq TDCi) models of varying engine sizes, and like any engine ECU, it plays a huge role in the smooth and efficient running of your engine.

You might’ve noticed the SID206’s 2006 release coincided with the implementation of Euro 4 emission standards. As a result, these control modules carefully manage fuel delivery and airflow (intake boost and EGR) to deliver power while adhering to the aforementioned emission constraints.

SID206 Ford ECU fault explained
As mentioned, these control modules are particularly susceptible to failure which causes huge issues for affected owners. The reason for this is because of the internal components that make up the SID206.

Due to the huge range of Ford vehicles these ECUs are fitted to, Siemens produced the SID206 in mass. Inevitably, these control modules had to be manufactured with more affordable internal components in order to minimise costs. As you can imagine, these internal components didn’t turn out to be bulletproof and often degrade and fail earlier than you’d expect in the vehicle’s lifetime.

Failure of the SID206 typically causes your Ford’s engine to begin cutting out before it soon fails to start at all. This is typically accompanied by an illuminated engine warning light and a loss of communication with the engine ECU reported by other modules. While these symptoms are quite broad, the presence of codes P0606 and P0A09 points the finger firmly at your Ford’s SID206 ECU.

Our SID206 Ford ECU fault solution
As we mentioned, the reason these control modules malfunction so frequently is due to the commonly-failing components they come loaded with when they leave the factory. This means replacement units are also susceptible to the same degradation.

Unfortunately, this is a mistake affected owners make all too often. It might seem like a quick-and-easy solution to just replace the defective SID206. However, this not only leaves you vulnerable to future failure but back-order delays and further recoding requirements significantly delay this process.

Instead, we propose having your Ford’s SID206 engine ECU comprehensively remanufactured.

This is the very service we provide. By choosing to have your ECU remanufactured it’ll not only save you time and cost you less, but it’ll resolve your problem for good.

We remanufacture these units with higher-than-OEM-standard components which upgrade unit durability and keeps your vehicle on the road for longer. Despite this, we’ll still cover your unit with an unlimited-mileage lifetime warranty too.

In addition to our rapid 2-3 working days turnaround, you won’t even need to recode your rebuilt SID206 back to your Ford – it’ll be plug-and-play as soon as you receive it back from us.

To resolve your issues properly, have your SID206 remanufactured by the experts – complete this test form to get started today.

Common failure symptoms:

• No start
• Cutting out
• Engine warning light on
• No communication with engine ECU
• Immobiliser light flashing

Common fault codes:

• P0606 – ECU Processor Fault
• P0A09 – DC/DC Converter Fault, Circuit Low
• P0604 – PCM RAM Error
• P0605 – PCM ROM Error
• P060C – Internal Control Module Main Processor Performance

Test and rebuild:

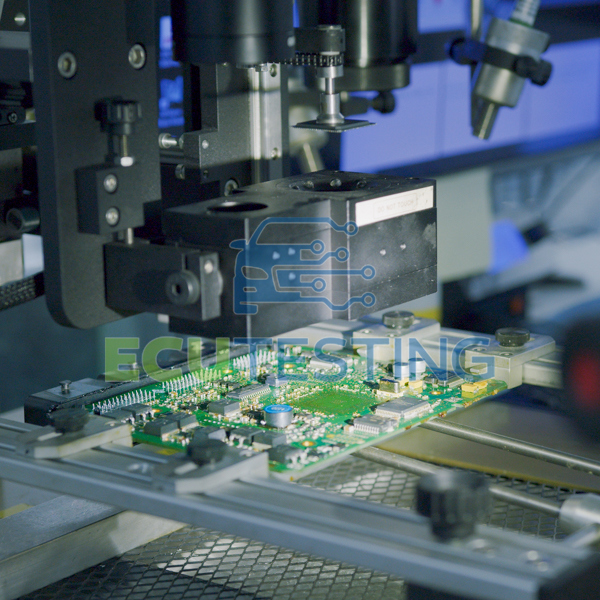

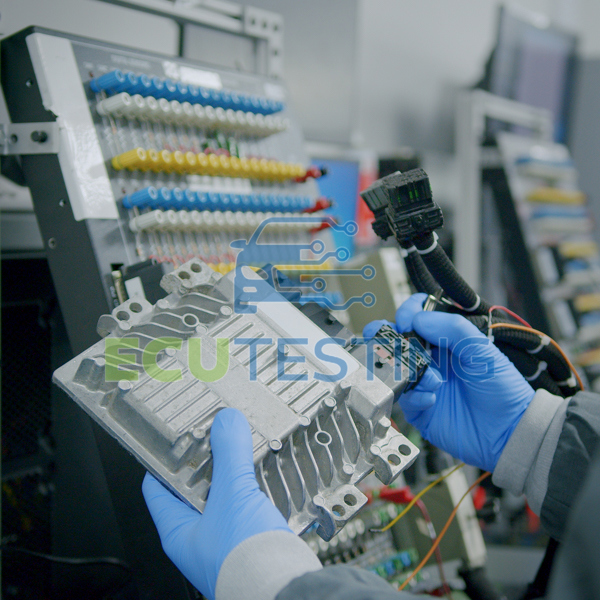

All SID206 ECUs are analysed on custom-built testing rigs to expose hard-to-find faults. Once we’ve pinpointed all underperforming areas, your control module is remanufactured with higher-than-standard components.

Programming:
All programming information is retained within the unit throughout our process. You’ll be able to refit the ECU without incurring any additional charges to have it recoded to your vehicle.

Quality:
Our commitment to quality is demonstrated by our industry-leading defect rate of 0.49%. Thanks to this, we’ve become a chosen provider of automotive remanufacturing services for thousands of industry specialists worldwide.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the SID206 ECU inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your ECU with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the SID206 inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control module and call to inform you of the outcome of testing. If your unit is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your ECU and return it to you with an unlimited mileage warranty.

If you require further information regarding this SID206 Ford ECU then please contact us.
