P062D Ford Transit – Engine ECU Fault

Are you experiencing injector problems in a 2L Mk8 Transit? If you’ve scanned the vehicle diagnostically and found a P062D code, your issues almost definitely stem from an engine ECU fault, rather than the widely-reported fuel injector defect seen on some models.

Shop Now – Ford Transit P062D Solution

You might already be aware that a number of 2.0L EcoBlue Transit and Transit Connects experience a problem where their fuel injectors degrade and create a host of running problems. Ford conceded that these issues were caused by a quality issue on Continental’s side, which caused symptoms like rough running, limp mode and no start.

However, if your Ford Transit has a P062D fault code stored, then your issues are actually being caused by an internal malfunction of the SID211 engine ECU. You’ll find these control modules fitted to Transit and Transit Custom models manufactured between 2016 and 2019, also with the 2.0L EcoBlue engine.

When your SID211 is defective, you’ll experience similar issues to the common injector fault, like misfires, a lack of power, engine stalling, difficulty starting and no start. If these symptoms materialise when the Ford Transit is warm and has been running a while, this is a key indicator of a SID211 fault, in addition to P062D.

What causes the P062D fault in Ford Transits?
As we’ve covered, this code is caused by a defective engine ECU. The reason these control modules fail so often is because of their low-quality internal components. These unreliable components degrade faster than you’d expect them to, which ultimately restricts the ECU from carrying out key functions.

One of the key functions the SID211’s internal malfunction is preventing is the grounding of injector circuits – hence your Ford Transit’s P062D code:

• P062D – Fuel Injector Driver Circuit Performance Bank 1

You’ll no doubt know already that many engine ECUs control fuel injection timing by pulse width modulating the ground circuit of each injector. This is done to achieve maximum efficiency and accuracy, ensuring only the perfect amount of diesel is delivered to the combustion chamber at exactly the right time.

Unfortunately though, the SID211’s internal fault makes this process much less efficient and can prevent the injector from firing when required. Although the root cause of this issue is being caused by the ECU itself, the SID211 continues to monitor these circuits for abnormal behaviour. When your Ford Transit’s ECU detects a discrepancy in an injector circuit, it’ll cause the P062D code to store.

This is also the reason you’ll experience typical injector-fault-like symptoms, like a lack of power and difficulty starting, when the SID211 fails.

How to resolve the Ford Transit P062D fault?
When dealing with a P062D SID211 fault, many affected Transit owners are advised to purchase and replace their ECU with a brand-new one from Ford. However, you’ve got to understand that replacements come loaded with the same components that caused your original issue. Thankfully, we’ve got a much more effective option.

We propose having your SID211 tested and comprehensively remanufactured. This way the original fault is resolved at its root, meaning functionality is restored long-term. This is the very service we provide, just fill out our test form to begin.

We use state-of-the-art testing rigs to analyse these ECUs under realistic operating conditions. This allows us to pinpoint even the most intermittent of faults and get to work rectifying them.

Once we’ve identified the root cause of your Ford Transit’s P062D code, we’ll rebuild your ECU with higher-than-OEM-standard components to upgrade unit reliability. Our process takes just 2-3 working days and we’ll even provide an unlimited-mile lifetime warranty too.

Solve your Ford Transit’s P062D code the right way, have your SID211 remanufactured by the industry experts – complete our test form to get started.

Common failure symptoms:

• P062D fault code stored
• No start (particularly when the engine is warm)
• Intermittent starting issues
• Engine cutting out whilst driving
• Lack of power
• Misfires
• Engine light on

Common fault codes:

• P062D – Fuel Injector Driver Circuit Performance Bank 1
• P02E8 – Diesel Intake Air Flow Position Sensor
• P06A7 – Sensor Reference Voltage B Circuit Range/Performance

Test and rebuild:

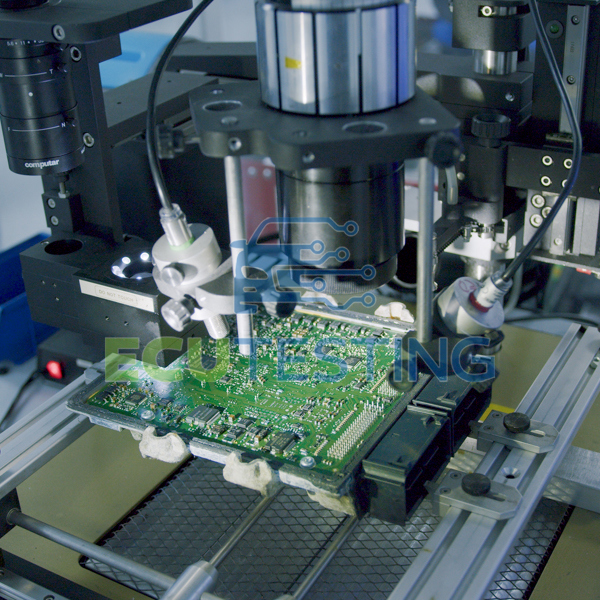

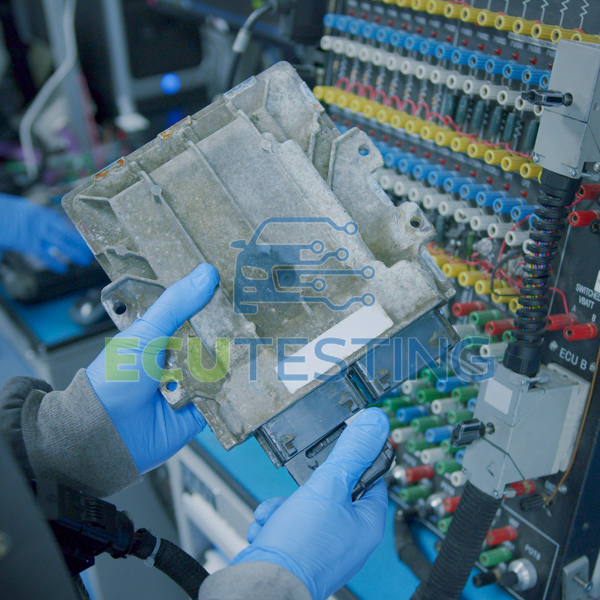

We use custom-built hardware-in-the-loop testing rigs to analyse your control module and uncover hard-to-find faults. This allows us to get to work and rectify the root cause of failure with top-grade components and advanced techniques.

Programming:
All programming previously contained in your control module is retained through our process. This means you won’t need to have your rebuilt ECU recoded to your vehicle at any further time or expense.

Quality:
We pride ourselves on providing high-quality service for the industry. This is exemplified by our proud defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the Transit ECU inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your ECU with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.


What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the engine ECU inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control module and call to inform you of the outcome of testing. If your SID211 is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Ford Transit P062D fault then please contact us.
