Ford P0300 Misfire Code - Common ECU Fault

If your Ford is struggling to start and has a P0300 misfire code stored, you may be dealing with a known engine ECU fault. When this happens, misfires occur and the engine management light illuminates on the dashboard, often alongside related codes P0301 to P0304. Our specialist ECU test and rebuild service identifies the root cause of the P0300 misfire code affecting Ford ECUs providing you with a reliable long-term solution.

SHOP NOW - RESOLVE FORD P0300 Misfire Code

The P0300 misfire code occurs across a range of Ford vehicles equipped with different ECUs. The most common vehicles affected are the Ford Ka 1.2L petrol, with the IAW 5SF fitted to the second-generation model (2009-2013) and the FPT 9GF fitted to the third-generation model (2013-2016). Despite the generational difference, most of these units suffer from the same underlying fault. Thankfully, we provide a reliable solution for this issue. Complete this test form to have your module remanufactured in 2-3 working days.

What Does P0300 Mean On A Ford?
The P0300 (Random/Multiple Cylinder Misfire Detected) is a generic OBD-II diagnostic trouble code (DTC) indicating that the engine management system has detected repeated misfires across multiple cylinders. When the P0300 is present on a Ford or any other vehicle, the code will not indicate which specific cylinder is affected, unlike codes P0301, P0302, P0303, and P0304. This is because the ECU uses the crankshaft position sensor to attribute misfires to specific cylinders in the firing order. If the misfire pattern is random, intermittent, or spreads across multiple cylinders, the ECU stores P0300 instead.

This is exactly what occurs in affected Ford Ka models with P0300. In these cases, the code is commonly linked to an ECU fault that causes misfires with no consistent pattern across cylinders, or that affect several cylinders at once. Left unresolved, this failure will cause the engine to lose power and trigger the engine management light on the dashboard. In severe cases, the vehicle becomes difficult to start, or fails to start altogether.

What Triggers The Ford P0300 Misfire Code?
Under normal operating conditions, the ECU constantly monitors and controls fuel injection and ignition timing to keep the engine running efficiently. Where the ECU is the cause of failure, heat cycling, vibration and electrical stress gradually degrade internal components, compromising the control module's internal circuitry. A faulty control unit may no longer send the correct signals to the ignition coils, resulting in poor combustion across one or more cylinders.

As the fault progresses, the ECU begins to store one or more diagnostic trouble codes including:

• DTC P0300 - Random/Multiple Cylinder Misfire Detected
• DTC P0301 - Cylinder 1 Misfire Detected
• DTC P0302 - Cylinder 2 Misfire Detected
• DTC P0303 - Cylinder 3 Misfire Detected
• DTC P0304 - Cylinder 4 Misfire Detected

Once the issue becomes more severe, the ignition control signal may become unreliable or fail completely, causing rough running or a complete non-start. External factors such as faulty injectors, wiring harness damage or unstable battery or alternator voltage can also cause the ECU to store P0300. However, if these symptoms are accompanied by two or more additional misfire codes, it is a strong indicator of ECU failure. Whether these have been ruled out or not, our specialist ECU testing service will determine if the misfire code originates from a fault with your module.

Ford P0300 Fault Code - Should I Replace The ECU?
If you identify your Ford’s ECU as the cause of the P0300 misfire code, you may be advised to replace it with a brand-new unit. While it might solve the issues temporarily, replacement units are expensive and still contain the same components that originally failed, leaving the unit vulnerable to repeat faults in the future. Instead of replacing the ECU, opting to have your original unit remanufactured by a specialist provides a more reliable, long-term alternative.

Our Solution
Thankfully, this is the very service we provide. We offer a specialist ECU test and rebuild service for Ford ECUs causing the P0300 misfire code. Our technicians use state-of-the-art testing rigs to analyse the ECUs under realistic operating conditions. This allows us to pinpoint even the most intermittent faults and rectify them.

Once we’ve identified the root cause of your Ford P0300 misfire code, we’ll rebuild your ECU with higher-than-OEM-standard components to upgrade the unit’s reliability. Our process takes just 2-3 working days, and we’ll even provide an unlimited-mile lifetime warranty too. Fill out this test form and begin the rebuild process.

Common failure symptoms:

• Misfire
• EML on the dashboard
• Loss of power
• Non-start

Common fault codes:

• P0300 - Multiple cylinder misfire detected
• P0301 - Misfire cylinder 1
• P0302 - Cylinder 2 Misfire
• P0303 - Cylinder 3 Misfire
• P0304 - Cylinder 4 misfire

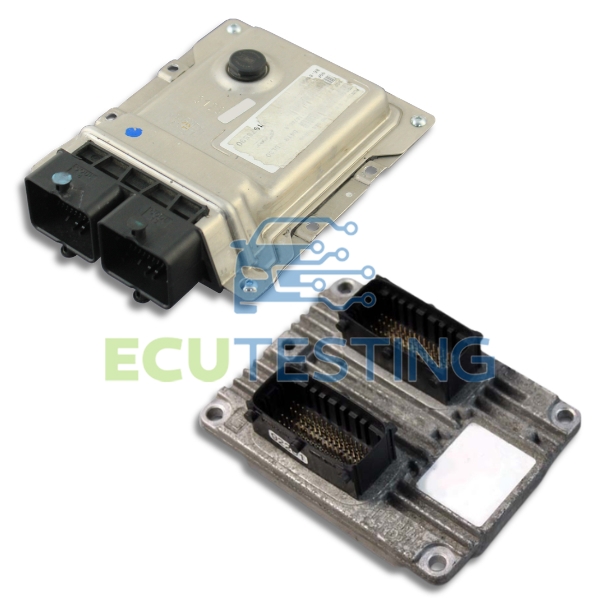

Commonly affected units:

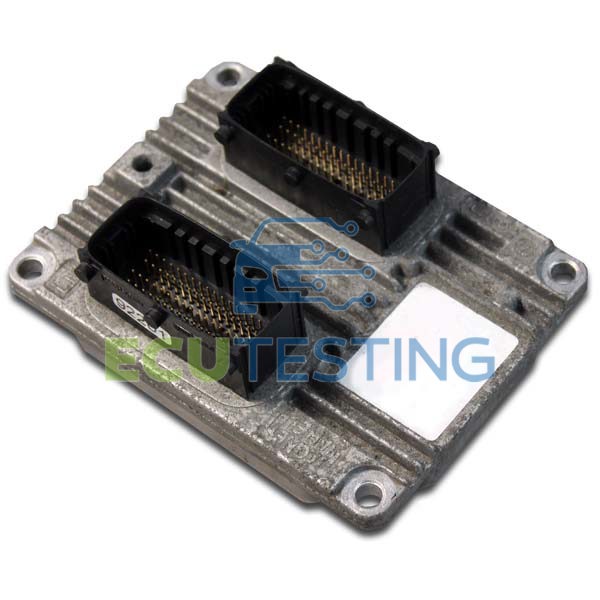

Magneti Marelli IAW 5SF

SHOP NOW - FORD KA (2009-2013)

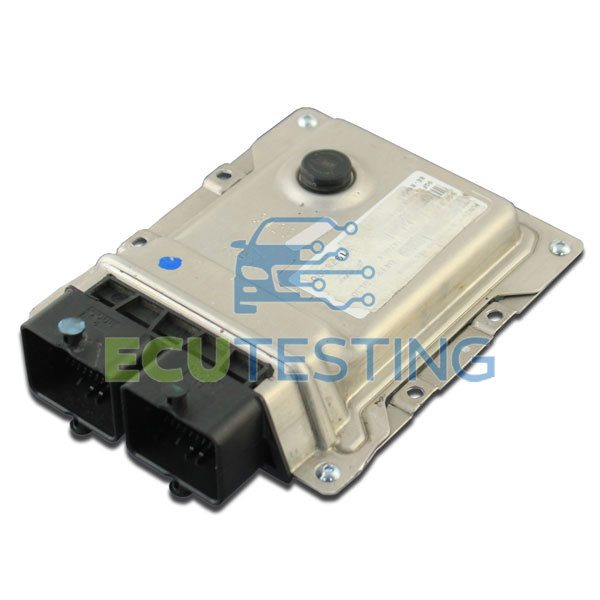

Magneti Marelli FPT 9GF

SHOP NOW - FORD KA (2013-2016)

Test and rebuild:

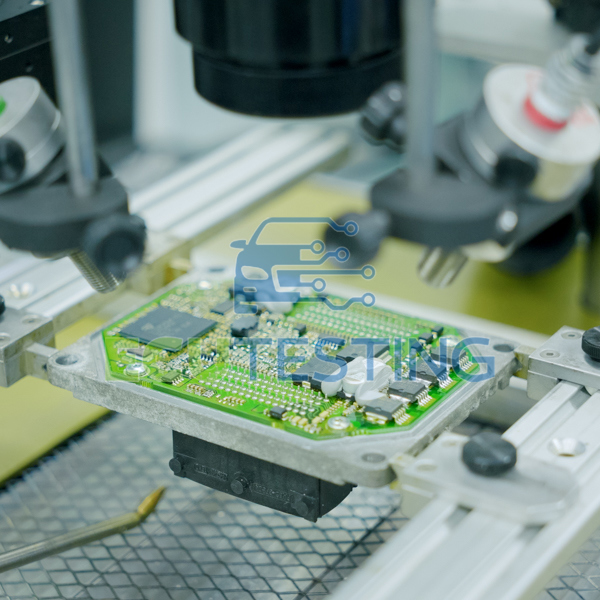

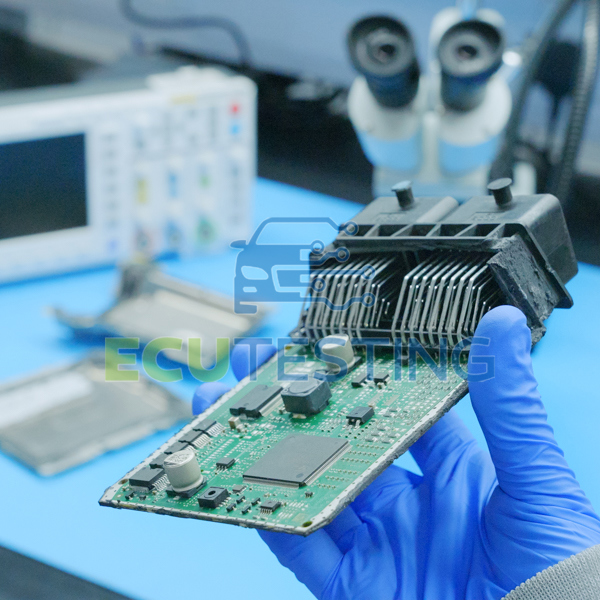

We use specialist custom-built testing rigs to analyse each Ford control module to identify defects with pinpoint accuracy. We utilise higher-than-OEM-components in our rebuilds to ensure functionality is restored for good.

Programming:
Don't worry about having to recode your ECU when you receive it back from us as all programming information stored in your unit is preserved throughout our process.

Quality:
Our entire process is geared towards continuous improvement, and we strive to provide an excellent standard of service in the automotive aftermarket. This is evidenced by our industry-leading defect rate of 0.49%.

Warranty:
Lifetime unlimited mileage*

How do I get my unit rebuilt?
To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.
Print the payment/booking confirmation email.
Package the ECU inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.
Send us your package by tracked courier (the shipping instructions are on the confirmation email).
Once received we will test, rebuild and return your Ford ECU with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping

What if I don’t want to pay up front?
This is not a problem, if you prefer this option then follow these steps:
Fill in and submit this test form.
Print the booking confirmation email.
Package the module inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.
Send us your package by tracked courier (the shipping instructions are on the confirmation email).
Once received, we will test your control unit and call to inform you of the outcome of testing. If your ECU is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.
We will then rebuild your Ford module and return it to you with an unlimited mileage warranty.
If you require further information regarding this Ford ECU, then please contact us.
