Fiat 500 instrument cluster problem

Fiat 500 instrument cluster problem

Warning lights flashing with indicator or warning lights constantly on.

This Fiat 500 instrument cluster is a very common problem, when the unit fails it will cause various warning lights to flash when the indicator is used (normally the right-hand indicator), usually the ABS, engine management, battery and airbag light are affected but we have had reports of various warning lights being affected also.

In a lot of cases the warning lights will remain constantly on, even with the key removed. If you have either of these issues, then this is a clear indication that your Fiat 500 has the common instrument cluster problem. The fault is caused by an internal failure of the instrument cluster control board. Normally you would need to replace the instrument cluster with a new unit from the manufacturer, but this is very expensive and will need to be programmed to the vehicle, causing additional expense. Plus, you only get a one-year warranty on a new unit.

A more cost-effective and reliable solution is to have your own instrument cluster rebuilt. We are able to rebuild your own unit, using components that are higher rated than the standard versions, and provide you with an unlimited mileage lifetime warranty.

Shop Now

Common Failure symptoms:

  • Various warning lights constantly lit
  • Warning lights flashing when using the indicator



Affected Vehicles:



VM Part No/s:

  • 503005214330 / 503002127200 / 503005210301 / 503002124500 / 503005214210 / 735590740
  • 503015214307 / 503015214207 / 503005216930 / 503005216201 / 735527213



OEM Part No/s:

  • 735516052 / 735483646 / 735471904 / 735516034 / 735590736 / 735545855
  • 4902192209 / 490219 2209 / F41D57D7L / 735493392



Test and rebuild:

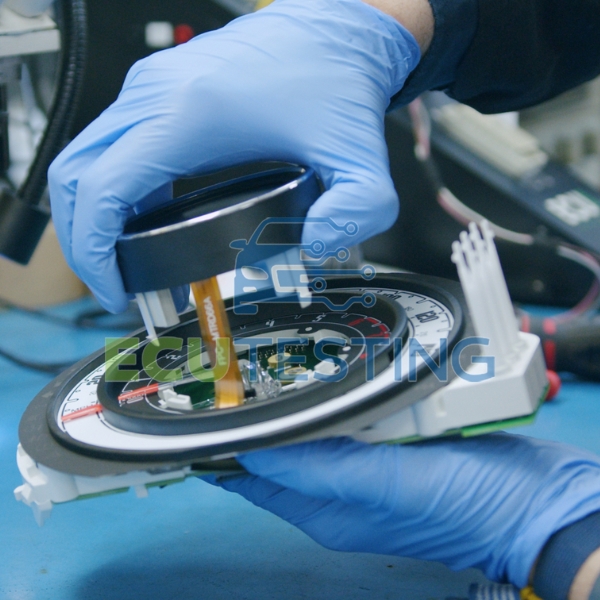

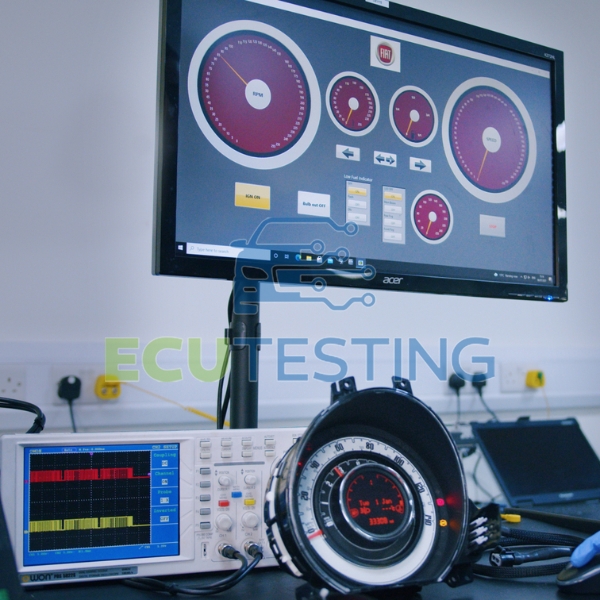

Every Fiat 500 instrument cluster is fully tested on our bespoke instrument cluster test rig before any rebuild work is carried out. All functions are tested, lights, gauges, central display and warning functions. Once the unit is identified as faulty, we then move onto the rebuild stage. Each unit is fully stripped, all common failing components are then replaced with versions that are higher rated than standard. Once the rebuild is complete, we then retest the instrument cluster to ensure it functions in accordance with the manufacturers original specification.



Programming:

When we rebuild your instrument cluster, all original programming and coding is retained. So no need for any programming work when your receive the unit back.



Quality:

We have rebuilt this type of Fiat 500 instrument cluster for Franchise main dealers and independent specialists for many years, so you can be sure of our very high standard of work.



Warranty:

Lifetime unlimited mileage*



Price and product info: FIAT 500 0.9 - 1.4 DASHBOARD INSTRUMENT CLUSTER



How do I get my unit rebuilt?

Pay for the rebuild here: Get yours rebuilt

Print the payment/booking confirmation email.

Package the instrument cluster inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your unit with an unlimited mileage lifetime warranty. (if your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping)



What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the unit inside a sturdy box with plenty of packaging material (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your instrument cluster and call you to advise on the outcome of testing, if your unit is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Fiat 500 instrument cluster then please contact us.
