P189C - Audi A1 & A3 DQ200 Mechatronic Fault

If your Audi A1 or A3 has lost the functionality of its direct-shift gearbox (DSG) and it has a P189C DTC stored, it sounds like you’re experiencing a DQ200 mechatronic control module fault. Fortunately, we’re the experts at remanufacturing these units with an unlimited-mileage lifetime warranty included.

Shop Now – Audi P189C solution

The DQ200 (also widely known as the DSG7) is fitted to a huge range of VAG models, including the A1 (2010-2020), A3 (2008-2023) and TT (2008-2014). The DQ200 is a low-torque 7-speed transmission and it’s generally fitted to front-wheel-drive Audi models with smaller engines (sized between 1.0L and 2.0L).

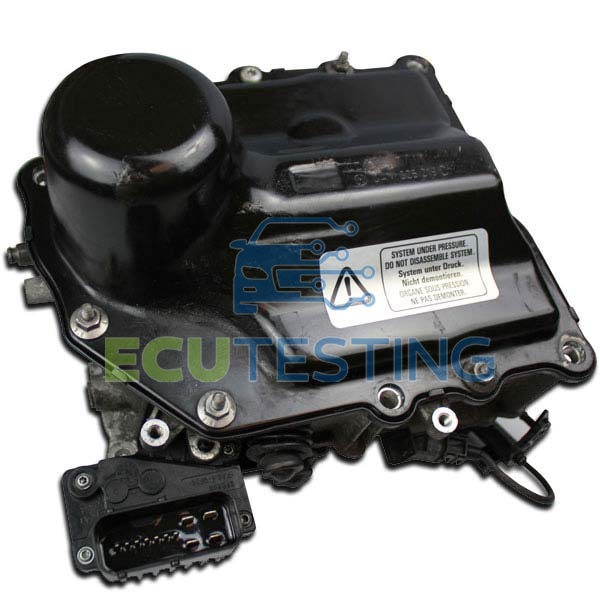

The DQ200’s mechatronic unit is a hydro-electric control unit which is responsible for ensuring the smooth and efficient running of the transmission system. When failure strikes, driveability is significantly impacted and fault codes like P189C will be stored in your Audi A1 or A3’s TCU. DQ200 mechatronic failure is almost always accompanied by a plethora of warning lights too – such as the transmission, PRNDS, EPC and engine warning lights.

Fortunately, DQ200 mechatronic failure doesn’t have to be as expensive as it seems. Our comprehensive remanufacturing service is much more cost-effective than sourcing a replacement and we’ll actually resolve your Audi A1 or A3’s P189C code for good. Simply use this test form to get started.

Audi A1 & A3 P189C fault explained
As you might already know, the DQ200 mechatronic utilises hydraulic power in order to engage the two clutches and actuate the gear selector forks. This entire process is overseen by a TCU, which is responsible for controlling hydraulic pressure distribution within the mechatronic unit.

Unfortunately, when this intricate control unit suffers an internal defect, the direction and control of hydraulic pressure becomes inconsistent. While this causes a huge range of issues, one fault code in particular indicates your Audi A1 or A3’s DQ200 mechatronic is defective:

• P189C – Function Restriction due to Insufficient Pressure Build-Up

As indicated by your diagnostic tool, this code relates to a lack of hydraulic pressure within the mechatronic unit. This of course, means the TCU can’t control the clutches and gears reliably. Inevitably, this leads to inconsistent gear changes, a loss of certain gears or a complete loss of drive.

Thanks to a variety of sensors internal to the mechatronic unit, your DQ200 TCU understands functionality has been compromised, so it begins to mitigate damage by placing the transmission into a protective state. This is evidenced by your Audi A1 or A3’s enforced limp mode and stored P189C code indicating ‘function restricted’. In some cases, you’ll also find a P17BF code which indicates the hydraulic pump has been placed into a protective state.

How to resolve your Audi A1 or A3’s P189C fault
Once it’s become apparent to affected A1 and A3 owners that their DQ200 mechatronic is the cause of their Audi’s P189C code, they often choose to replace it. However, this is absolutely not the most effective solution.

This is because the DQ200’s P189C-causing defect is often present in many other replacement units, including brand-new mechatronics. Of course, this means many owners purchase an expensive replacement only to suffer the very same fate.

Thankfully, we’ve developed a DQ200 mechatronic remanufacturing service that excels at resolving P189C DTCs in Audi A1s and A3s.

Our solution

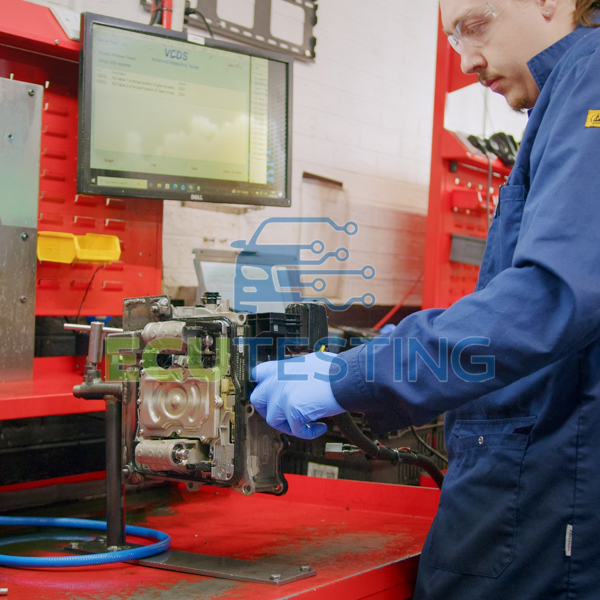

Thanks to our custom-built hardware-in-the-loop testing rigs, we’re able to analyse DQ200 mechatronic units under realistic operating conditions and loads. This enables us to uncover the root cause of your Audi’s P189C code quickly and accurately every time.

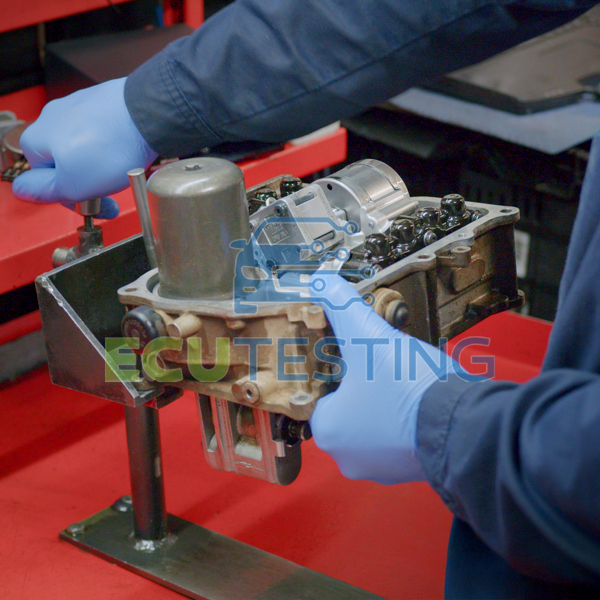

Our team of vastly experienced technicians will then remanufacture your defective control unit with higher-than-OEM-standard components. This ensures functionality is restored to your DQ200 for good, keeping your Audi out on the road and free of P189C for the foreseeable future.

Thankfully, our process retains all coding information stored in the control unit when you sent it to us, meaning you won’t have to recode the mechatronic when you receive it back.

We do all of this in just 2-3 working days and we’ll even cover you with an unlimited-mileage lifetime warranty too.

Resolve your Audi A1 or A3’s P189C code the long-lasting way – have your DQ200 mechatronic remanufactured by the experts by completing this test form today.

Common failure symptoms:

• A loss of individual gears
• A complete loss of drive
• Transmission warning light on
• Engine warning light on
• PRNDS light on
• EPC warning light on
• No communication with the transmission system

Common fault codes:

• P189C - Function Restriction due to Insufficient Pressure Build-Up
• P17BF - Hydraulic Pump Play Protection
• P0841 - Transmission Fluid Pressure Sensor: Implausible Signal
• P1895 - Restriction due to Pressure Drop

Video:

Reinstallation:

Test and rebuild:
Our testing rigs are custom-developed in order to analyse DQ200 mechatronic units thoroughly and effectively. Once we’ve pinpointed the cause of failure, we’ll rectify it by remanufacturing the unit with top-grade components and the very latest equipment.

Programming:
You won’t need to have the DQ200 mechatronic recoded to your vehicle following the rebuild – however you should follow the steps outlined in our reinstallation video above.

Quality:
Due to our product-catalogue-wide offering of an unlimited-mileage lifetime warranty, we strive to provide an excellent service. Our strict quality assurance practices are exemplified by our proud defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the DQ200 mechatronic unit inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your control unit with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the DQ200 mechatronic inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your unit and call to inform you of the outcome of testing. If your mechatronic is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Audi P189C fault then please contact us.
