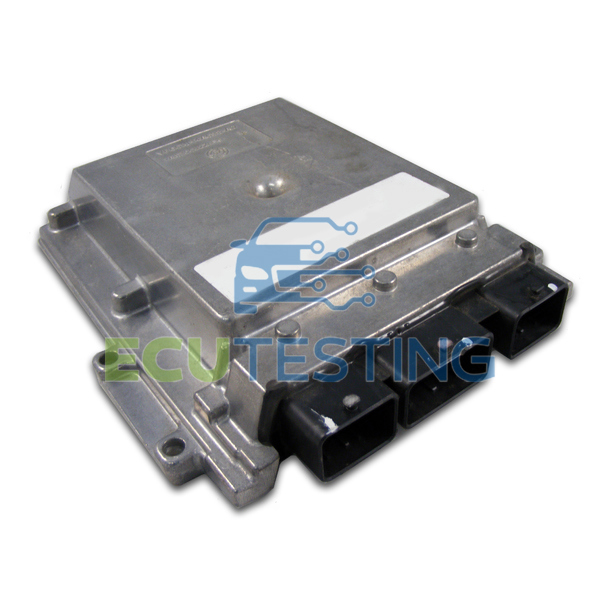

Visteon DCU-102 Repair – Fiat Ducato, Peugeot Boxer & Citroen Relay ECU Causing P0200

If you’ve got a Fiat Ducato, Peugeot Boxer or Citroen Relay (2.2L HDi/Multijet) experiencing engine starting problems, there’s a good chance it’s fitted with the commonly-failing Visteon DCU-102 ECU. Thankfully, we can restore full functionality to these problematic units in just 2-3 working days with a lifetime warranty included.

Shop Now – Visteon DCU-102 ECU Repair

These control modules are fitted to 2.2L HDi and Multijet models manufactured between 2007-2014. Unfortunately, they’re particularly susceptible to developing internal faults that cause a range of engine-related problems, including non-start, cutting out, and an illuminated EML.

When failure strikes, it’s common for a handful of DTCs to store - including P0200, P0603 and P062B. Thankfully though, whether you’ve got a Fiat Ducato with P0200 stored or a Peugeot Boxer with P0603 stored, if a DCU-102 is the source of your problems, then we can help.

Send your Visteon DCU-102 to us for comprehensive testing – we’ll let you know if a repair is possible and carry out a functionality-restoring rebuild within 2-3 working days. Just fill out our short test form to get started.

Visteon DCU-102 fault explained
These engine control modules are particularly susceptible to developing internal defects much earlier in their lifetime than you might expect.

When your Visteon DCU-102 is in need of repair, it’s very unlikely the engine will be able to run smoothly and consistently, if at all. In most cases, the engine warning light will illuminate as a result of stored DTCs, such as:

• P0200 – Injector Circuit Malfunction

This code is stored by the engine ECU, in this case a Visteon DCU-102 in need of repair, when it has detected abnormal behaviour in its injector driver circuitry. In some cases, the accompanying diagnostic message might reference ‘open circuit’ or ‘short to ground’ depending on the specific tool used.

The P0200 DTC stored in your Peugeot Boxer or Fiat Ducato is, in most cases, triggered by a DCU-102 fault. When these control modules fail, their ability to accurately switch the current path to the injectors is hindered. This of course significantly disrupts the combustion process, which can lead to cutting out and a loss of engine start.

Visteon DCU-102: repair or replace?
Having diagnosed their Ducato, Boxer, or Relay’s stored P0200 DTC, many owners opt to replace their defective DCU-102 with a brand-new one from Fiat, Peugeot or Citroen respectively. However, this isn’t the most effective course of action.

As Visteon DCU-102s are constantly in need of repair due to recurring internal malfunctions, there’s no guarantee a replacement won’t suffer the same fate. This can cause owners to fork out for an expensive replacement which only solves their symptoms temporarily.

Instead, we have a much longer-lasting solution – a comprehensive rebuild of your original ECU.

Our solution

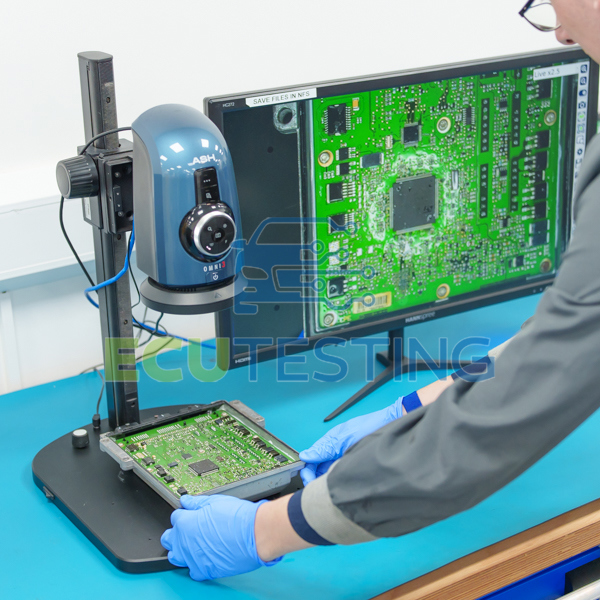

We specialise in restoring full functionality to commonly-defective engine control modules just like the Visteon DCU-102. We utilise hardware-in-the-loop (HIL) testing rigs to examine ECUs under realistic operating conditions. This helps to pinpoint the root cause of failure, including hard-to-find and intermittent faults.

Our team of expert technicians will then rebuild your ECU with components of a higher standard than OEM. We do this to enhance the durability of your unit, which is why we proudly cover all rebuilds with an unlimited-mileage lifetime warranty – much longer than standard Visteon DCU-102 repair services.

We’ll carry this out in just 2-3 working days and you won’t even need to recode the ECU back to your vehicle afterwards. Resolve your Fiat Ducato or Peugeot Boxer’s P0200 DTC for good, have your DCU-102 ECU remanufactured.

Common failure symptoms:

• Non-start
• Cutting out
• EML on
• No communication with the engine ECU

Common fault codes:

• P0200 – Injector Circuit Malfunction
• P0603 – Internal Control Module Keep Alive Memory (KAM) Error
• P062B – Internal Control Module Fuel Injector Control Performance
• P0251 – Injection Pump Fuel Metering Control “A” Range/Performance
• P2148 – Fuel Injector Group “A” Supply Voltage Circuit High

Location on the vehicle:
The Visteon DCU-102 ECU can be found towards the passenger side of the engine bay for right-hand drive vehicles.

Test and rebuild:

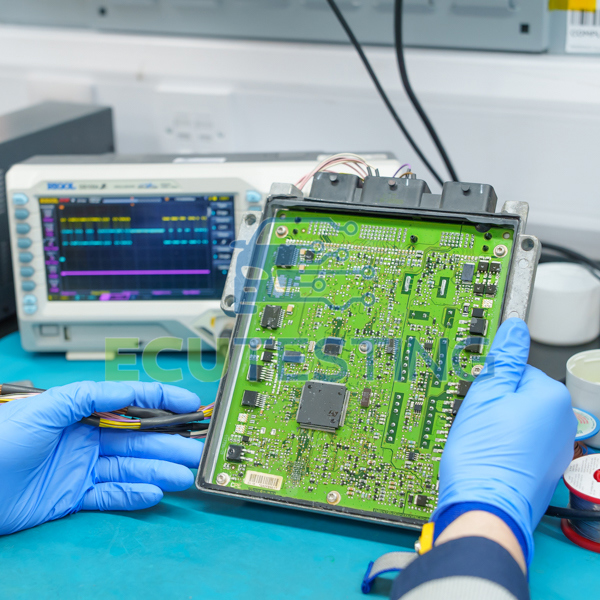

We utilise state-of-the-art testing rigs that are able to uncover hard-to-find faults. This not only informs our remanufacturing process, but it allows us to return your rebuilt ECU to you with confidence that it’ll remain fully functional for many years to come.

Programming:
Conveniently, our process has been designed to preserve all coding information previously stored in the unit. This means you can simply refit the rebuilt ECU straight away.

Quality:
Providing an excellent service is our primary objective, and this is exemplified by our proud defect rate of just 0.49%.


Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the DCU-102 inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your engine ECU with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.


What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the control module inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control module and call to inform you of the outcome of testing. If your ECU is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your unit and return it to you with an unlimited mileage warranty.

If you require further information regarding this Visteon DCU-102 ECU then please contact us.
