U1121 00 DTC – Common Audi & Volkswagen Fault

Do you have an Audi or Volkswagen vehicle with an illuminated warning light and a U1121 00 DTC stored? This can actually be caused by the failure of two separate modules in certain 2012-2021 vehicles. Thankfully, we can restore functionality to both of them in just 2-3 working days with a lifetime warranty included.

Shop Now – U1121 00 VW Golf Mk7 Solution

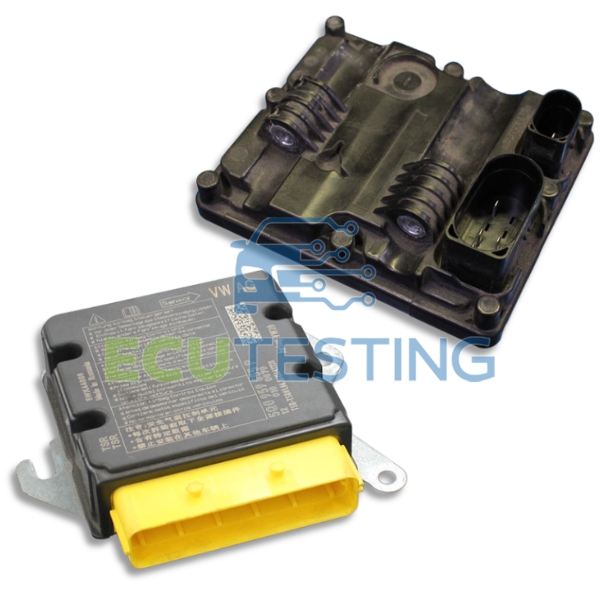

The U1121 00 DTC in Audi and VW vehicles can be caused by a malfunction of either the airbag control module or the Haldex all-wheel drive module. A defective airbag ECU has become a huge cause of U1121 00 in popular vehicles like the VW Golf 7 (2012-2016) and third-gen Audi A3 (2013-2018). Whereas, it’s more common for a Haldex ECU fault to cause U1121 00 in vehicles like the Audi Q3 (2014-2019) and VW Tiguan (2014-2021), amongst many others.

Additional failure symptoms of course vary depending on the defective control module in question. For example, if the airbag module is faulty, you’ll typically experience an airbag or parking brake warning light. When the Haldex ECU fails, AWD functionality is lost and the traction control warning light will illuminate.

Whether you’re experiencing additional symptoms or not, if your VW or Audi’s control module has U1121 00 stored, you can still send it to us for testing. We’ll use specialist equipment to verify whether the ECU is functional or not and let you know right away – use this test form to get started.

Audi & VW U1121 00 DTC explained
As mentioned, various VAG models suffer from airbag or Haldex ECU faults, and in both cases of failure, the same communication-related DTC is left behind:

• U1121 00 – Data Bus Missing Message

In order for each electronically monitored system in your vehicle to operate in harmony, each control module communicates via the CAN bus. For this communication hub to work effectively, each control module has to be able to reliably transmit and receive data when required.

Unfortunately, when modules like the airbag ECU or Haldex ECU suffer an internal fault, they lose the functionality to receive, recognise and process this data reliably. This is exactly what can happen in many VW and Audi vehicles, culminating in a U1121 00 code being stored for ‘missing message’.

How to resolve U1121 00 (Audi & VW)
In many cases of U1121 00, owners choose to replace their defective DTC-causing module with a brand new one. However, what these owners don’t consider is that the same fault may well be present in the replacement ECU.

As the control units in question are known to suffer from component failure, replacement units leave you vulnerable to re-malfunction as you’re simply reinstalling the very same commonly-failing components. Not only that, but you’ll lose further time and money by having to recode the control module back to your vehicle.

Thankfully, we’ve developed a much more effective solution to save you time and money on U1121 00 faults for both VW and Audi vehicles.

Our U1121 00 solution
We propose having your defective control module comprehensively remanufactured. This is a process that not only seeks to resolve the root cause of failure, but to overcome any areas of potential weakness in the unit. This way functionality is restored for the long-term future.

We even use higher-than-OEM-standard components in our process to enhance unit durability. Despite this, we’ll still provide you with an unlimited-mileage lifetime warranty too. Our process takes just 2-3 working days and you won’t need to recode it back to the vehicle afterwards, saving yet more time. To have your unit rebuilt, simply fill out our quick-and-easy test form.

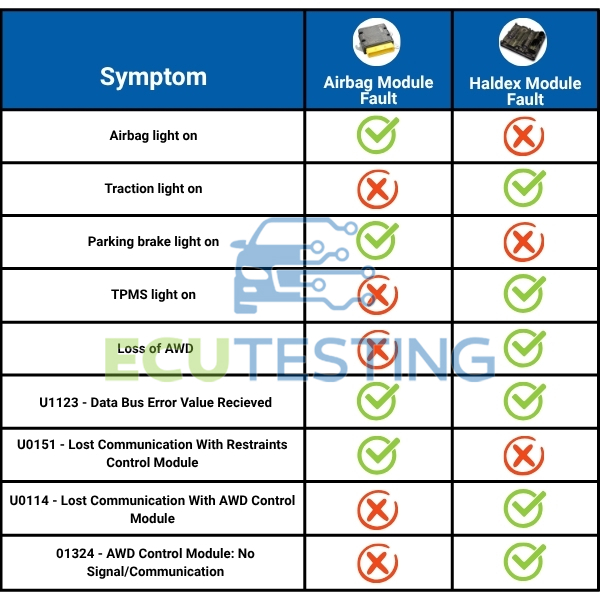

VAG airbag ECU fault – common cause of U1121 00

Common failure symptoms:

• Airbag warning light on
• Parking brake warning light on

Common fault codes:

• U1121 00 – Data Bus Missing Message
• U0151 – Lost Communication With Restraints Control Module
• U1123 – Data Bus Error Value Received

VAG Haldex ECU fault – common cause of U1121 00

Common failure symptoms:

• Loss of all-wheel drive
• Unable to communicate with the AWD module
• Traction warning light on
• TPMS warning light on
• ESP warning light on

Common fault codes:

• U1121 00 – Data Bus Missing Message
• U1123 – Data Bus Error Value Received
• U0114 – Lost Communication With AWD Module
• 01324 – AWD Module: No Signal/Communication

Test and rebuild:

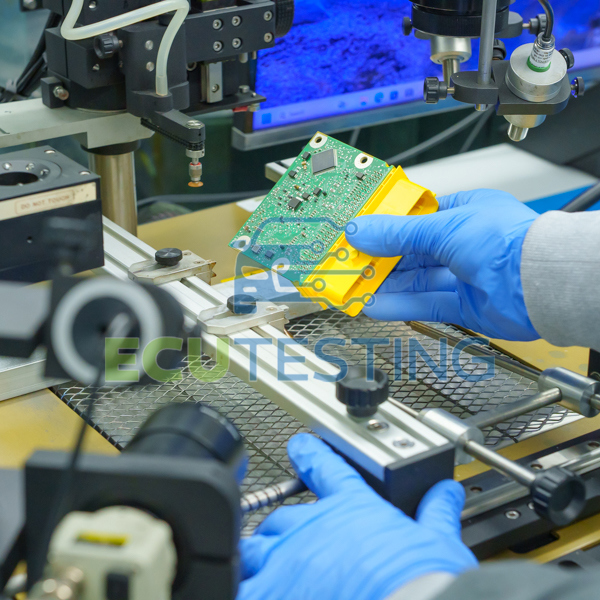

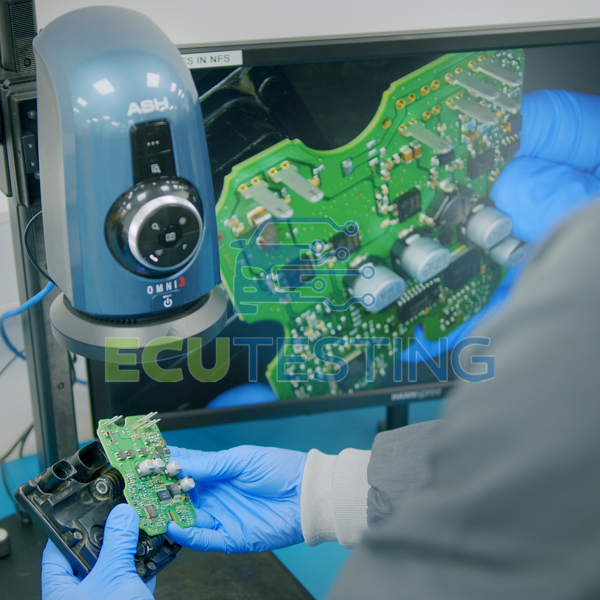

We test each control module on specialist HIL testing rigs. This allows us to analyse the unit under realistic operating conditions, revealing hard-to-find faults. Our expert technicians will then remanufacture your ECU with the latest equipment and techniques.

Programming:
When we remanufacture your control module, we retain all coding information previously stored in the unit when you sent it to us. This means you can refit it straight away once you’ve received it back.

Quality:
We pride ourselves on our attention to detail and this is evidenced by our proud defect rate of just 0.49%.

Warranty:

Lifetime unlimited mileage*

How do I get my unit rebuilt?

To pay for the rebuild click the Shop Now link above, select your part number and click: Get yours rebuilt.

Print the payment/booking confirmation email.

Package the control module inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your ECU with an unlimited mileage lifetime warranty. If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping.

What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow these steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the control unit inside a sturdy box with plenty of packaging material and make sure you include your confirmation email in the box.

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your control module and call to inform you of the outcome of testing. If your ECU is faulty and you choose to go ahead with the rebuild, then we will take payment over the phone using a debit/credit card.

We will then rebuild your module and return it to you with an unlimited mileage warranty.

If you require further information regarding this VW and Audi U1121 00 fault then please contact us.
