Freelander 2 and Range Rover Evoque turbo actuator problems – causing limp home mode.

Freelander 2 turbo actuator

This turbo actuator is specifically fitted to 2.2L Duratorq engine vehicles including: Freelander 2 and Range Rover Evoque. The turbo actuator is designed purposely for the Variable Geometry Turbocharger (VGT Turbo system).

Common malfunctions associated with manufacturing defects internal to the turbo actuator will cause restricted performance and an associated limp home mode, poor turbo boost and the constant illumination of the engine management light (EML). The Freelander 2 and Range Rover Evoque will often be forced into a limp home mode state due to failure of the boost control solenoid / turbo actuator. This actuator malfunction will cause running symptoms that may begin as intermittent, however when left will become permanent in nature, leading to the engine management light to become perpetually lit on ignition cycle.

For the Freelander 2 and Range Rover Evoque, these turbo actuators  are not available to purchase separately and are only sold from main dealership as part of a full turbo replacement. A second-hand actuator replacement would not work due to these being factory mapped/programmed to the specific parameters of the turbo it came from, fitting a second-hand turbo actuator will causes issues with the turbo and engine management system.

Our rebuild option for this turbo actuator will save you over a thousand pounds and provide added peace of mind with our unlimited mile lifetime warranty*



Common Failure symptoms:

Restricted performance

Loss of power

Limp home mode

Poor boost performance



Common fault codes:

P0047 – turbo boost control, circuit low.

P0046 – boost control valve/solenoid circuit range performance.

P2263 – turbocharger boost system performance.

P0238 – turbocharger boost sensor A circuit high.

P259E – turbocharger A boost control position at low limit.

P0048 – turbocharger/supercharger boost control circuit high

P2263 – turbocharger boost system performance.



Affected Vehicles:

Land Rover Freelander 2 2010-2015

Land Rover Range Rover Evoque 2011-2015

(click link to see turbo actuator product pages)



Common failing part numbers:

A2C53367342 / 03430018 / 4947719600 / 49477-19600

A2C91749100 / 3514195 / 42340513 A2C53367100

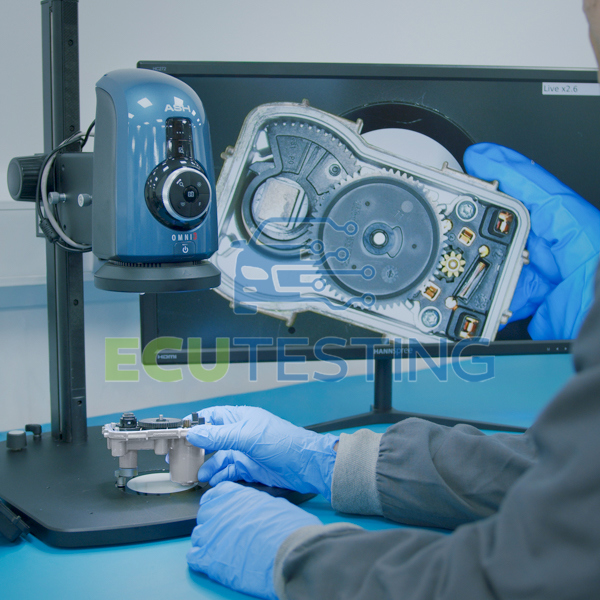

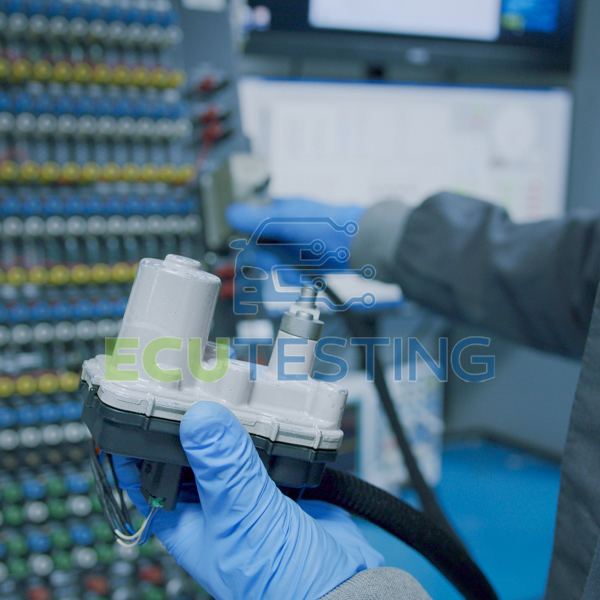

Test and rebuild:

Our rigorous turbo actuator testing will determine the root cause of each individual failure. Each actuator is fully tested using our Hardware In-the-Loop vehicle simulator which will test under real-world conditions. Once the root cause of failure has been identified our highly skilled technicians will replace all common failing components, we then transfer all calibration and mapping data back into the rebuild turbo actuator. We only use OEM or above rated components, and unlike the factory environment of the manufactures, our quality control is second to none.



Programming:

This turbo actuator is pre-coded at manufacture level to the turbocharger, all original programming and mapping data is retained following the rebuild of your unit – no need for any reprogramming or mapping once your receive your rebuild unit back. Simply refit and away you go.



Quality:

Our test and rebuild work is world renowned and are used by franchise dealerships and specialists across the globe. Utilising our close working relationship with our customers you can be assured of our extremely high standard of work.



Warranty:

Lifetime unlimited mileage*



How do I get my unit rebuilt?

Select your vehicles below and click 'Confirm purchase'

Land Rover Freelander 2 Turbo actuator rebuild

Range Rover Evoque Turbo actuator rebuild

Print the payment/booking confirmation email.

Package the turbo actuator inside a sturdy box with plenty of packaging materiel (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received we will test, rebuild and return your actuator with an unlimited mileage lifetime warranty. (If your unit turns out not to be faulty then we will refund your payment less a small testing fee and return shipping).



What if I don’t want to pay up front?

This is not a problem, if you prefer this option then follow the following steps:

Fill in and submit this test form.

Print the booking confirmation email.

Package the turbo actuator inside a sturdy box with plenty of packaging materiel (make sure you include your confirmation email in the box).

Send us your package by tracked courier (the shipping instructions are on the confirmation email).

Once received, we will test your actuator and call you to advise on the outcome of testing, if your turbo actuator is faulty and you choose to go ahead with the rebuild then we will take payment over the phone using a debit/credit card.

We will then rebuild your turbo actuator and return it to you with an unlimited mileage warranty.

If you require further information regarding this turbo actuator then please contact us.
